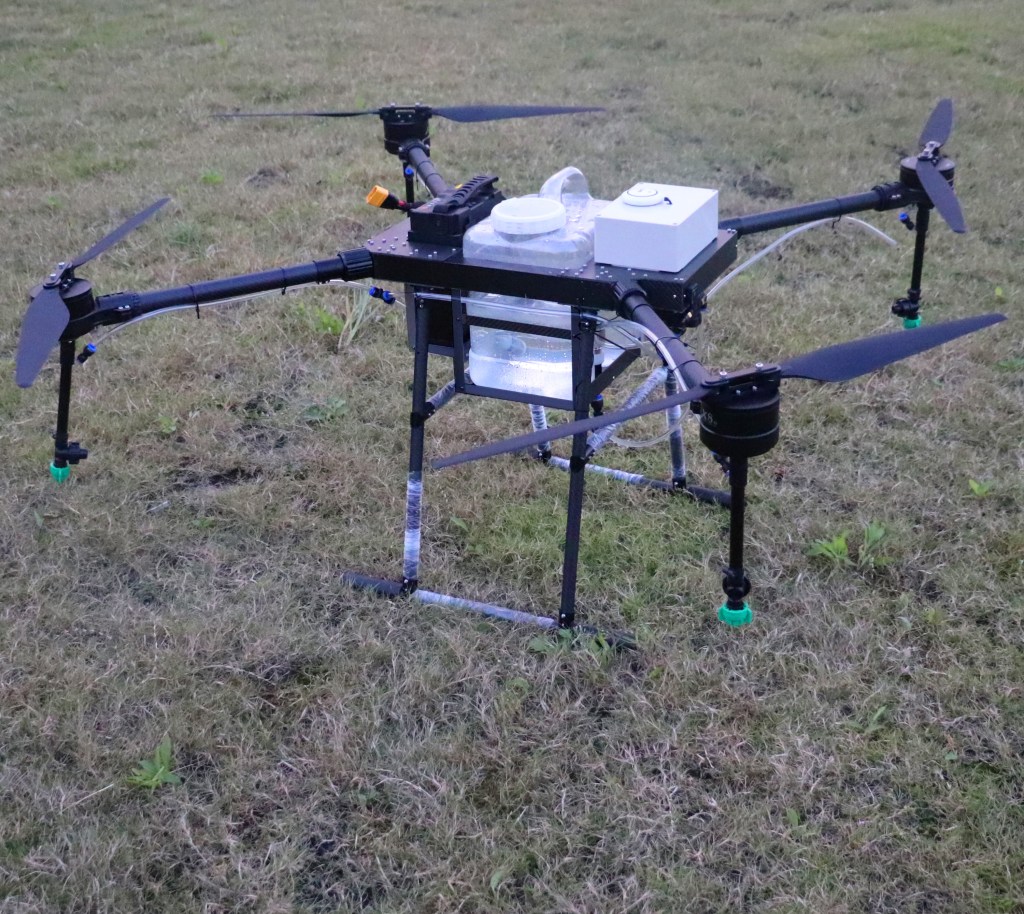

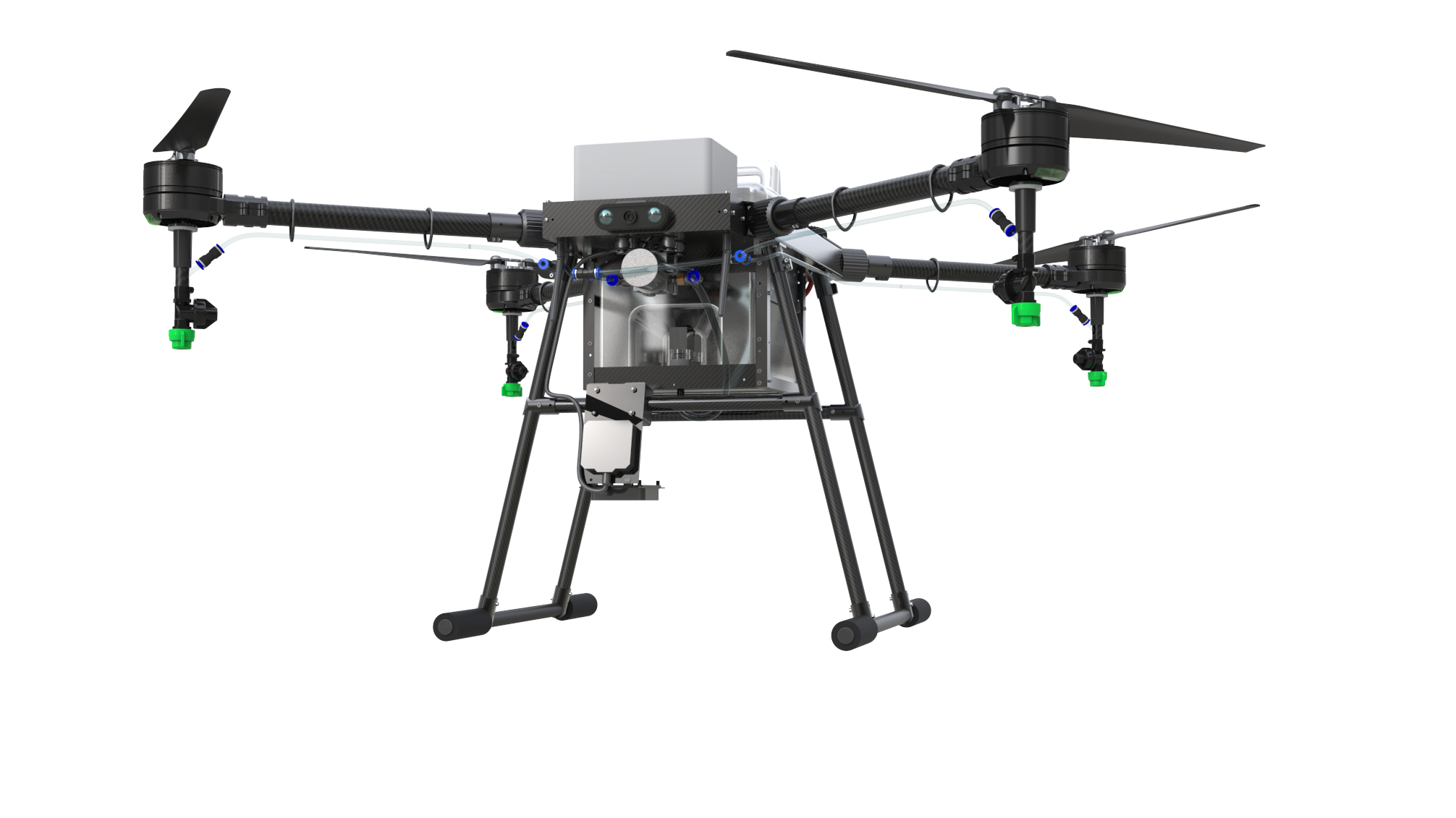

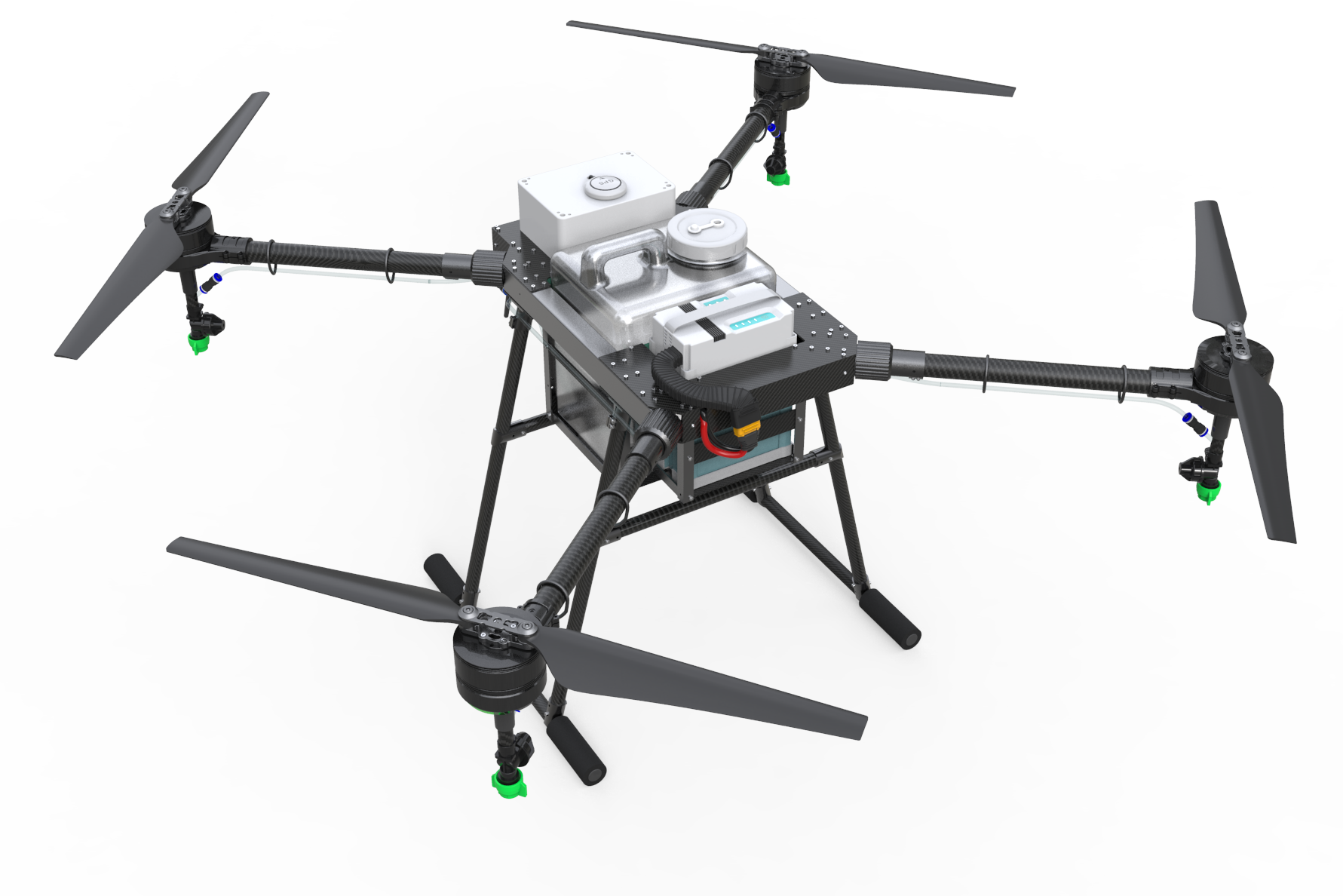

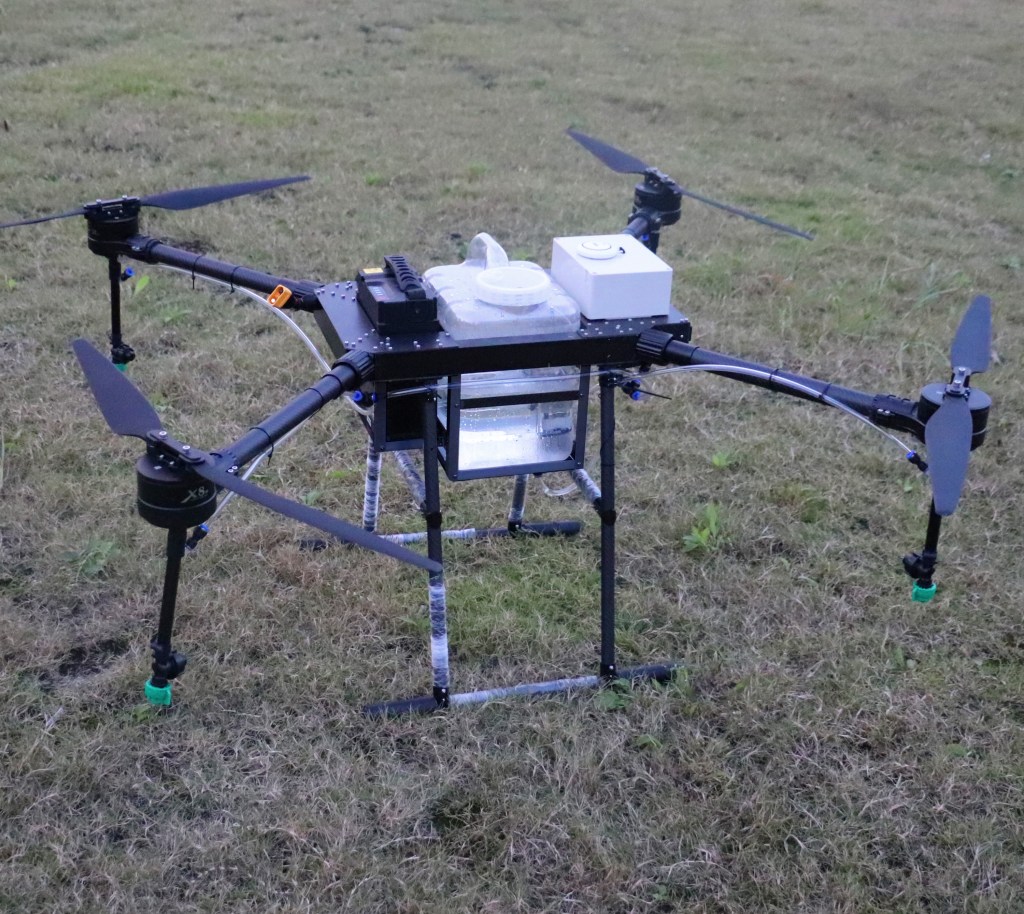

The M410 has a load of 10kg and a 4m wide spraying width. It has an operating efficiency of 0.6 hectares for a single sortie. It can dispatch 7-8 sorties per hour to complete about 4.5 hectares of land. At least 4 batteries are required to ensure uninterrupted operation of the drone. 2022 new drone, the most concise design, suitable for small plots of work, or used as a novice training machine.
Autonomous operation, easy and precise
By simply setting the operating parameters, fully autonomous operations can be achieved in a variety of operating scenarios such as terraces and orchards. In addition, the standard H12 long-distance digital image control integrated Android remote control, the system runs smoothly, and the interface is simple to operate. Equipped with a 5.5-inch high-brightness screen, you can see the screen clearly and operate easily under the scorching sun. The remote control has a built-in 1000mAh battery with a battery life of 20 hours, which fully meets the needs of long-term and high-intensity operations.
Multiple guarantees, safer flight

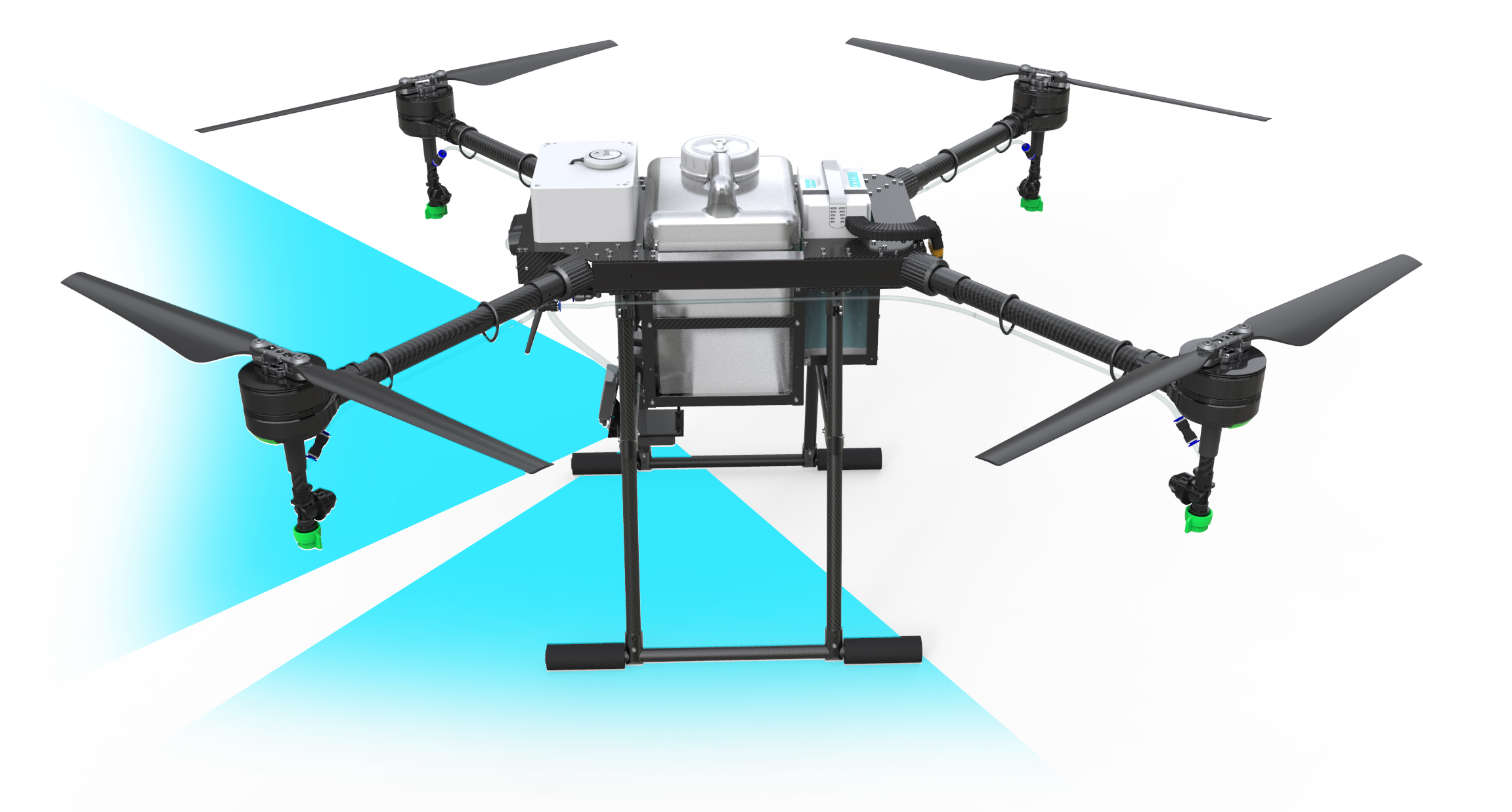

E410 is equipped with obstacle avoidance radar and ground defense radar, which can identify obstacles in front of the flight direction, and has the function of imitating ground flight to fully guarantee the safety of operation. Radar operation is not affected by ambient light and dust, and can perceive the farmland environment all-weather, and flight safety is further improved. E410 is also equipped with a real-time image monitoring system and night searchlights, allowing you to easily monitor the equipment operating environment.
Simple to use, worry-free maintenance

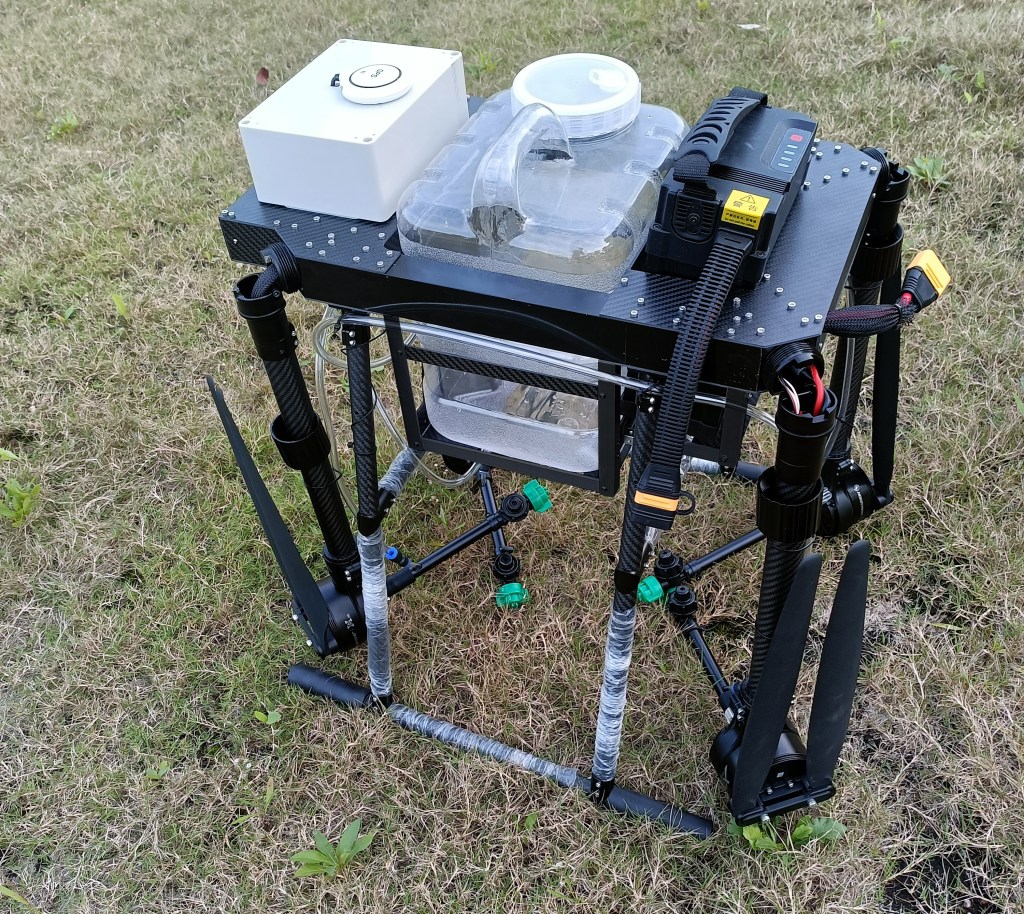

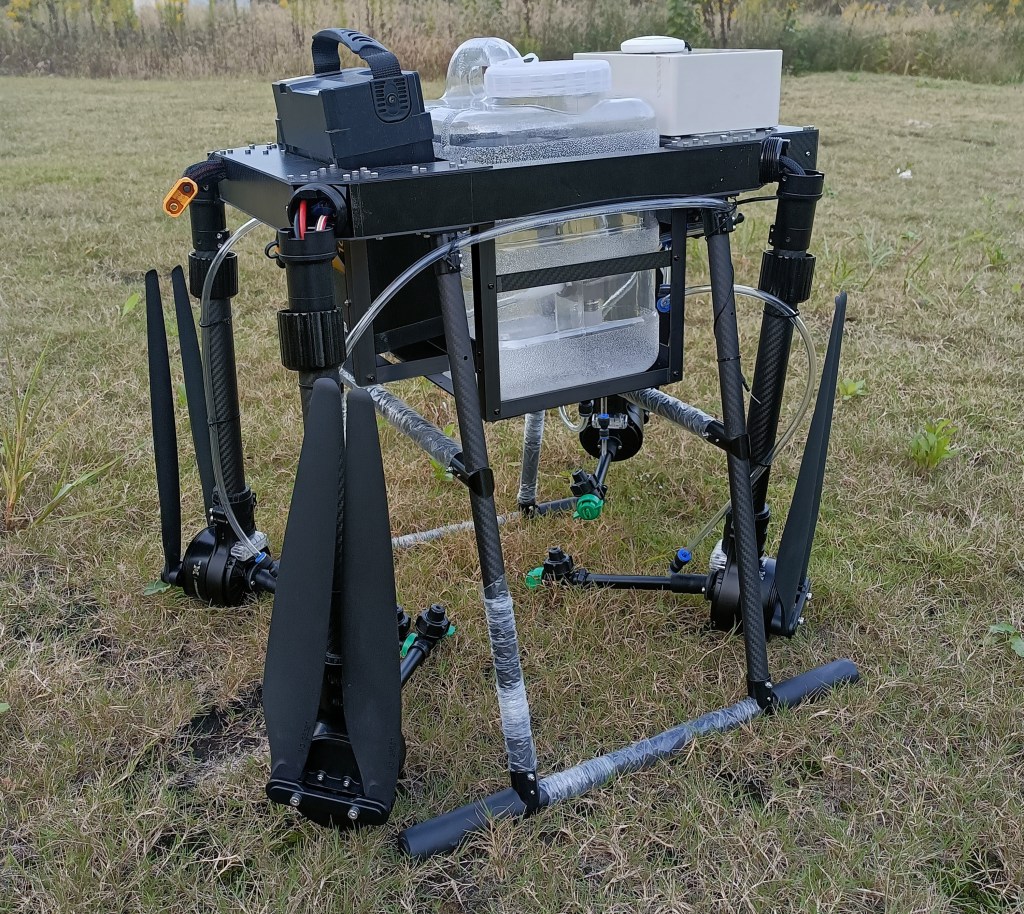

M410’s classic foldable body design reduces space occupation and facilitates transportation. The protection level of the core module reaches IP67, and the body can be washed directly with water. Daily use is more worry-free and effortless.
| Model Name： | FC-2022-M 410 |
| Expand Size： | 1080*1080*650mm |
| Folded size： | 600*550*650mm |
| Water tank volume： | 10L |
| Fully loaded flight weight： | 24.5KG |
| Fully loaded flight time： | 14min |
| No-load flight time： | 25min |
| Flying speed： | 0-12m/s |
| Flying height： | 0-30m |
| Effective spray width： | 4m |

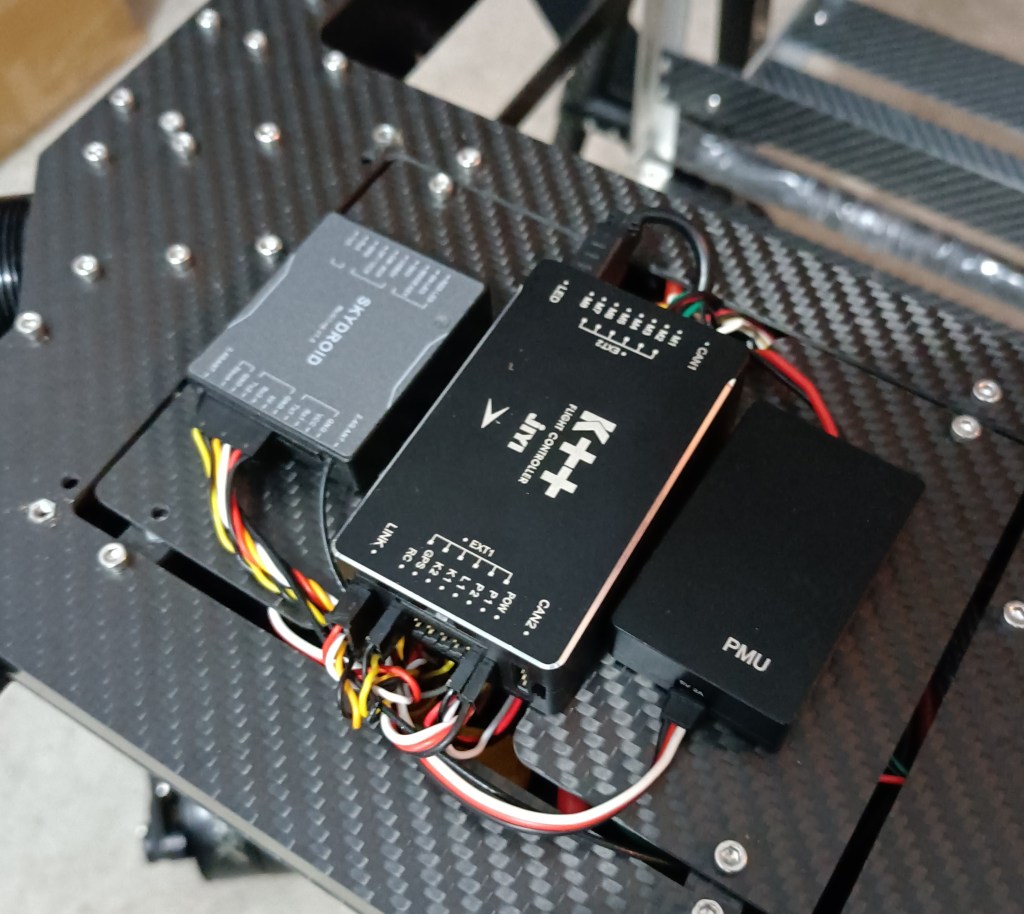

| Flight controller： | JIYI K++ |
| remote control： | H12 |
| Camera： | HD camera |
| radar： | Fixed height radar/Ground defense radar |
| Motor（Optional）： | X8brushless motor |
| Paddle： | 30inches |

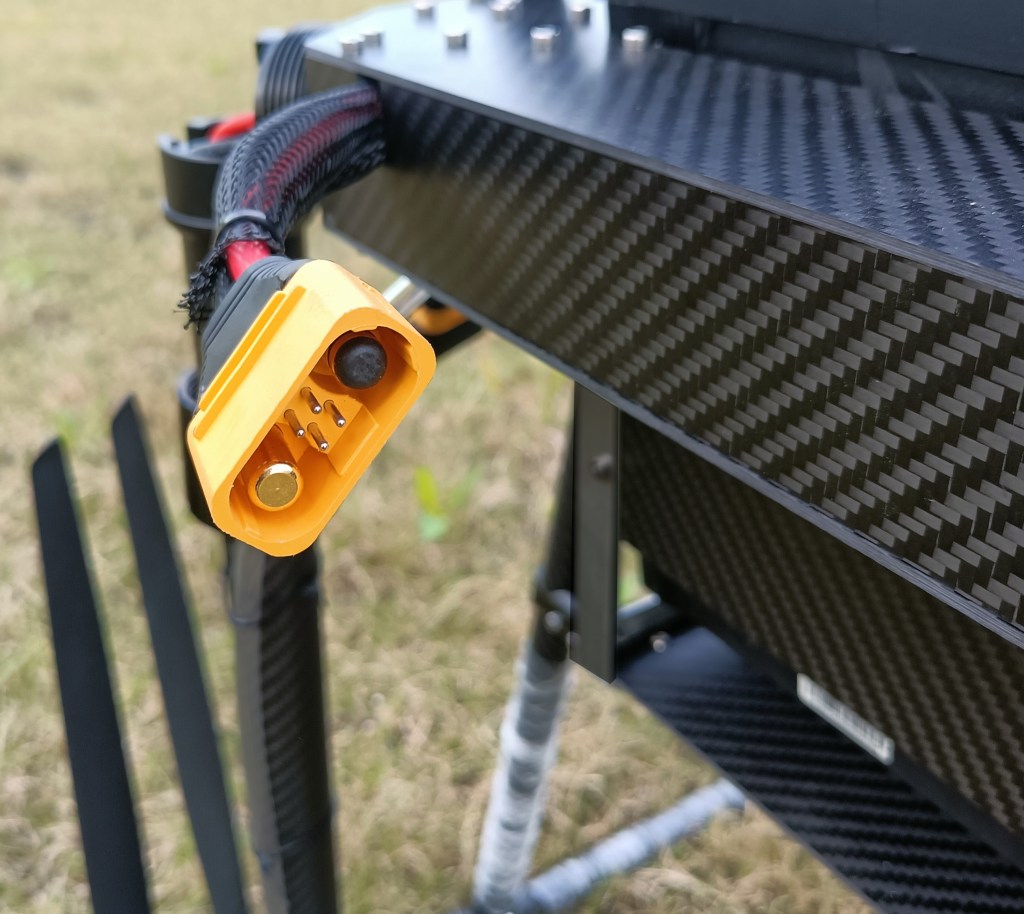

| Battery/quantity： | 12S,16000mah /4 |
| charger： | 2channels 1200W |
| Water pump： | Brushless water pump |
| Sprinkler： | Pressure nozzle |
Value: USD 5399
The value does not include the freight, because the destination country is different, the freight is different, and the freight cannot be unified.
M410 full set （Including frame, motor, water pump, flight control, camera） x 1
H12 remote control x 1
Smart lithium battery x 4
Charger x 1
