F850

The F850 has a payload of 50kg and a 9-meter wide spraying width. It has a single operation efficiency of 3.2 hectares. It can dispatch 5-7 sorties per hour to complete about 21 hectares of land. At least 10 batteries are required to ensure uninterrupted operation of the drone. The flight consumes 2 batteries. Make operations more efficient.






Autonomous operation, easy and precise

Simply set the operating parameters, you can achieve fully autonomous operation in a variety of operating scenarios such as terraces and orchards. In addition, the standard H12 long-distance digital image control integrated Android remote control, the system runs smoothly, and the interface is simple to operate. Equipped with a 5.5-inch high-brightness screen, you can see the screen clearly and operate easily under the scorching sun. The remote control has a built-in 1000mAh battery with a battery life of 20 hours, which fully meets the needs of long-term and high-intensity operations.




Multiple guarantees, safer flight

The F850 is equipped with obstacle avoidance radar and ground defense radar, which can identify obstacles in front of the flight direction, and has the function of imitating ground flight to fully guarantee the safety of operations. Radar operation is not affected by ambient light and dust, and can perceive the farmland environment all-weather, and flight safety is further improved. F850 is also equipped with a real-time image monitoring system and night searchlights, allowing you to easily monitor the equipment operating environment.

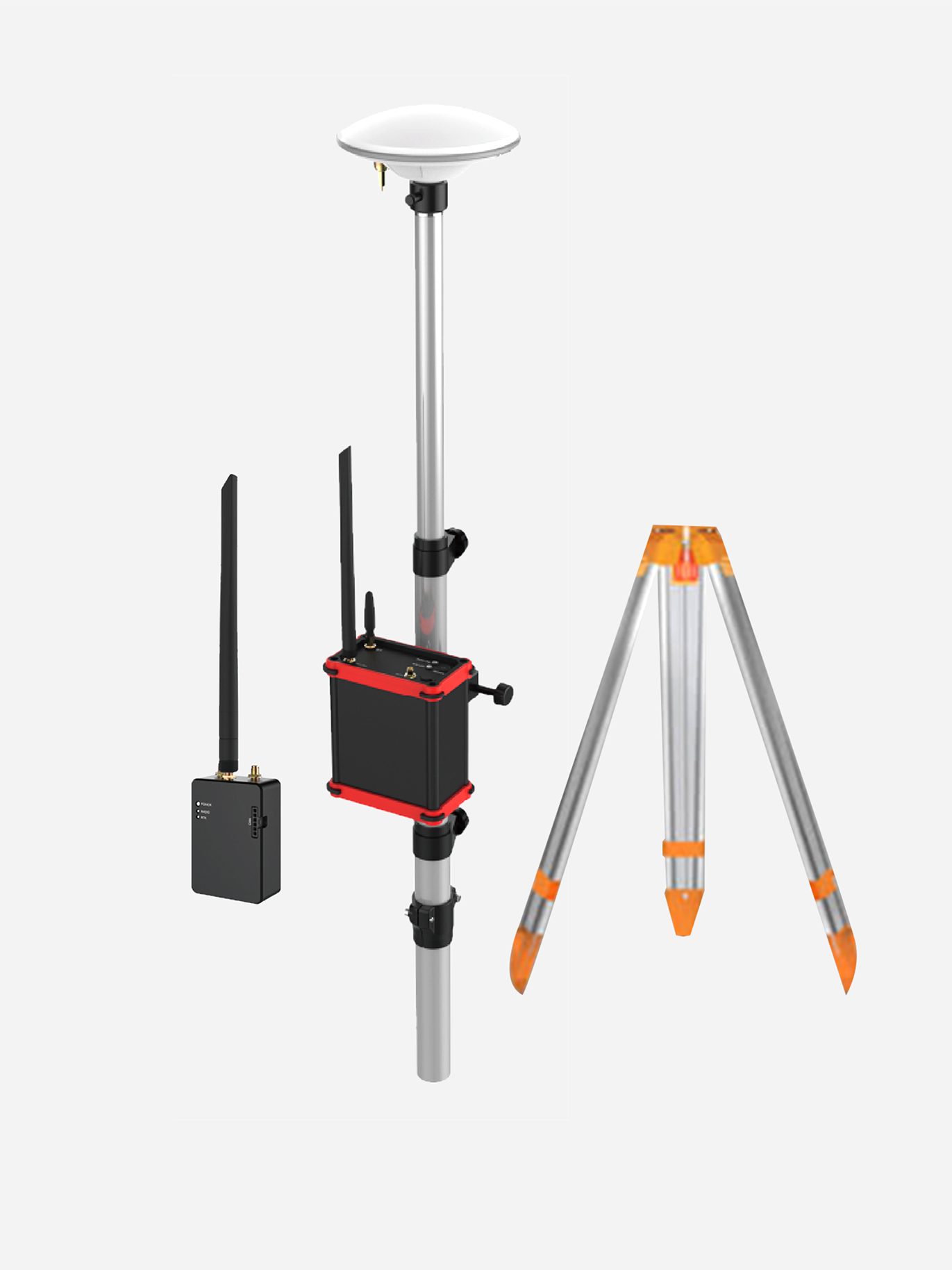

Equipped with RTK ground base station kit

Equipped with this set of equipment, the UAV can achieve centimeter-level positioning with an error of less than 5CM. The flight is more stable. In addition, it can make the UAV fly and work normally without GPS signal and network.




Simple to use, worry-free maintenance

Folding design reduces space occupation and facilitates transportation. The protection level of the core module reaches IP67, and the body can be washed directly with water. Daily use is more worry-free and effortless.



Model Name:FC-2021-F850
Expand Size:2800*2800*800mm
Folded size:700*650*1700mm
Water tank volume:50L
Fully loaded flight weight:98KG
Fully loaded flight time:17min
No-load flight time:37min
Flying speed:0-12m/s
Flying height:0-30m
Effective spray width:9m
Flight controller:JIYI K++
remote control:H12
Camera:HD camera
radar:Fixed height radar/Ground defense radar
Motor:X9 PLUS brushless motor
Paddle:36inches
Battery/quantity:
14S,28000mah /10
Charger/Quantity:2 channels 1200W/2
Water pump:Brushless water pump
Water pump:Pressure nozzle
RTK : RTK base station package
