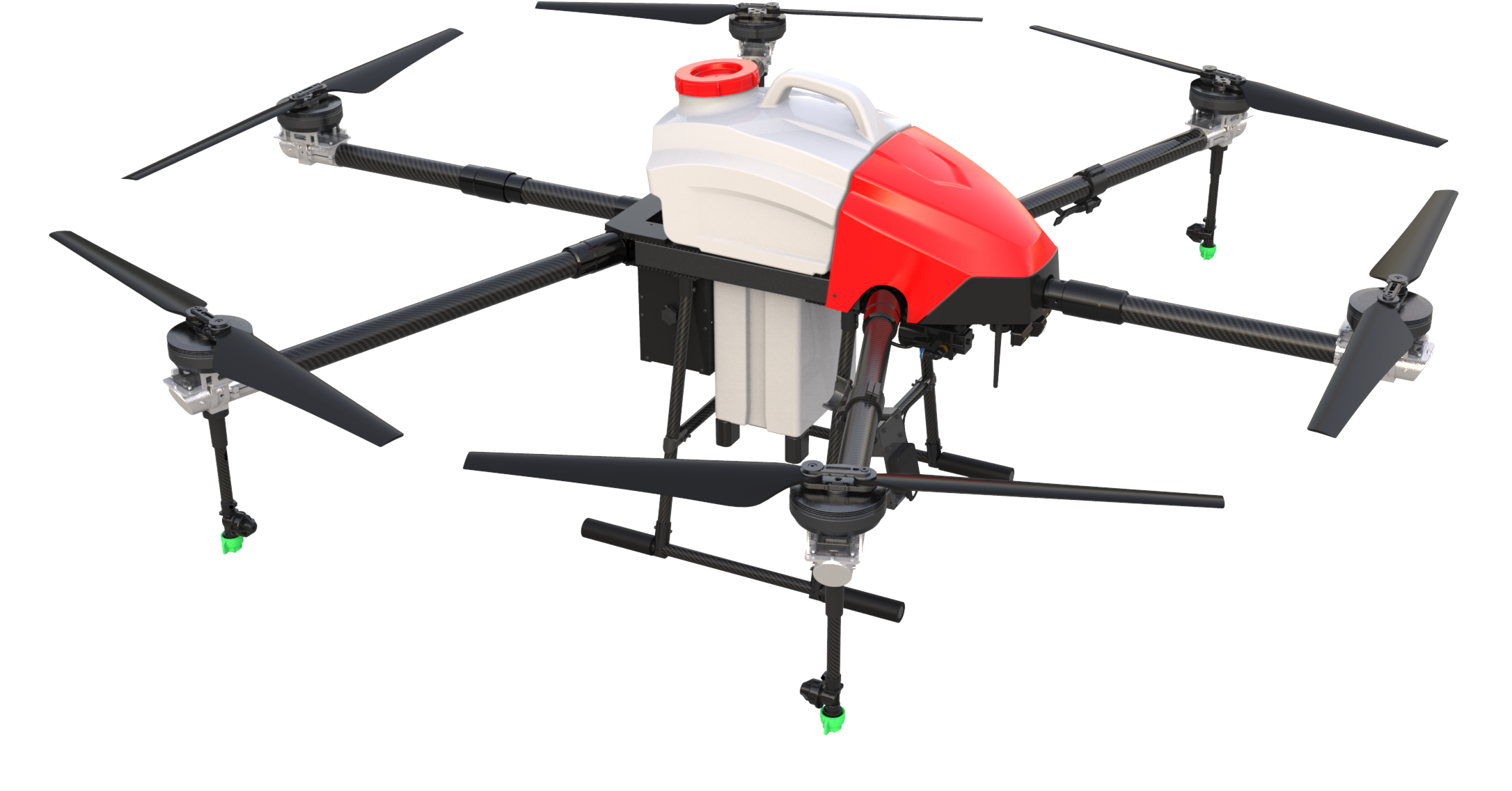

F620

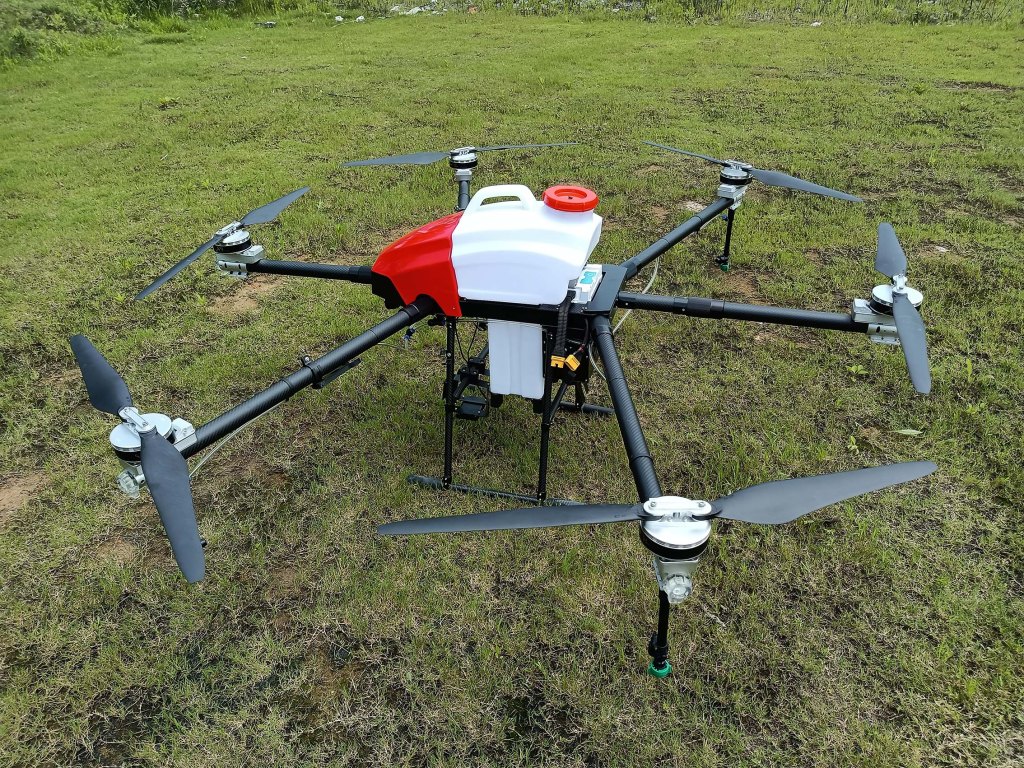

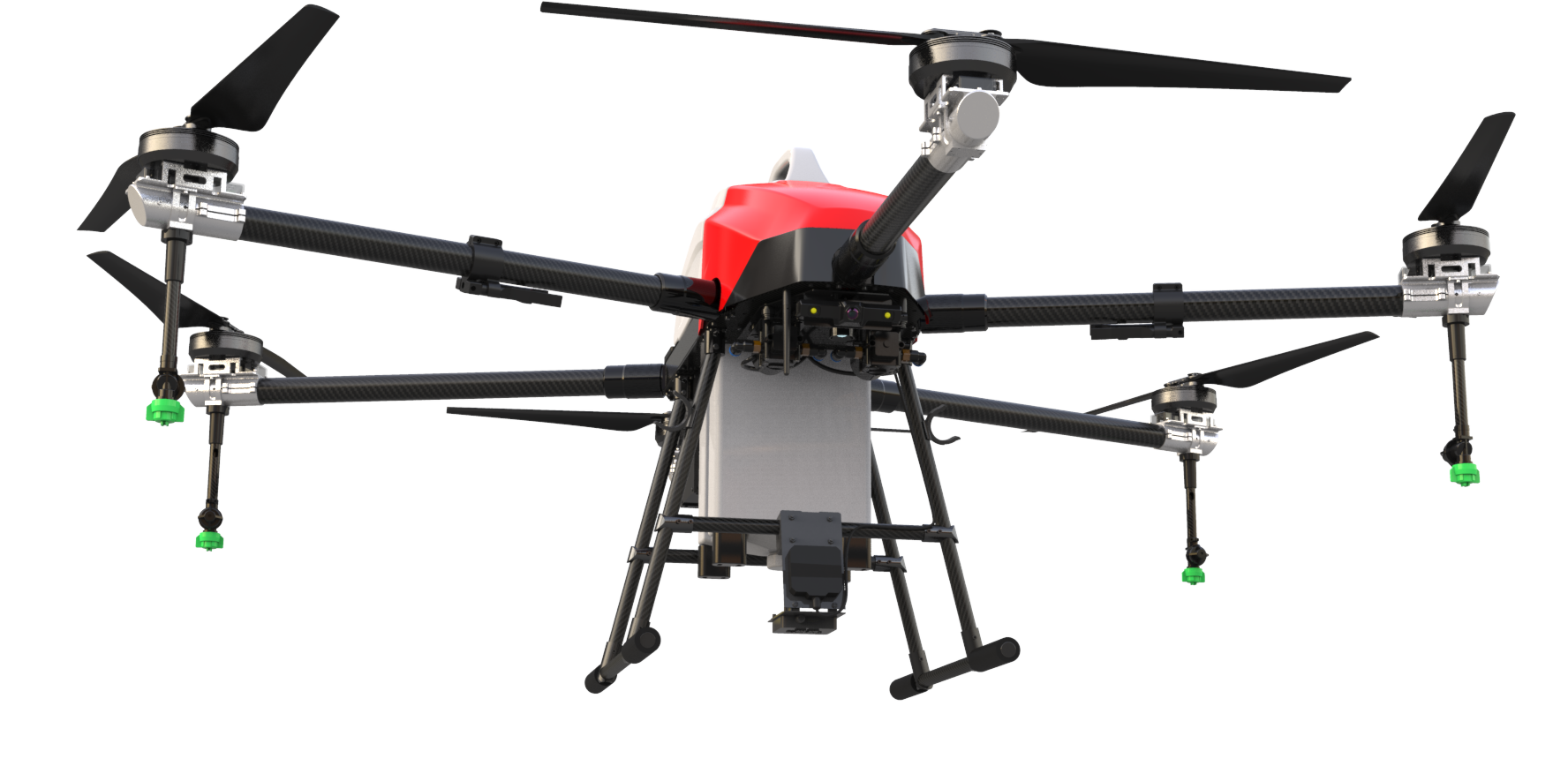

The F620 has a load of 20kg and a 5m wide spraying width. The efficiency of a single sortie is 1.3 hectares. It can dispatch 7-8 sorties per hour to complete about 10 hectares of land. At least 5 batteries are required to ensure uninterrupted operation of the drone. More efficient. Newest design.

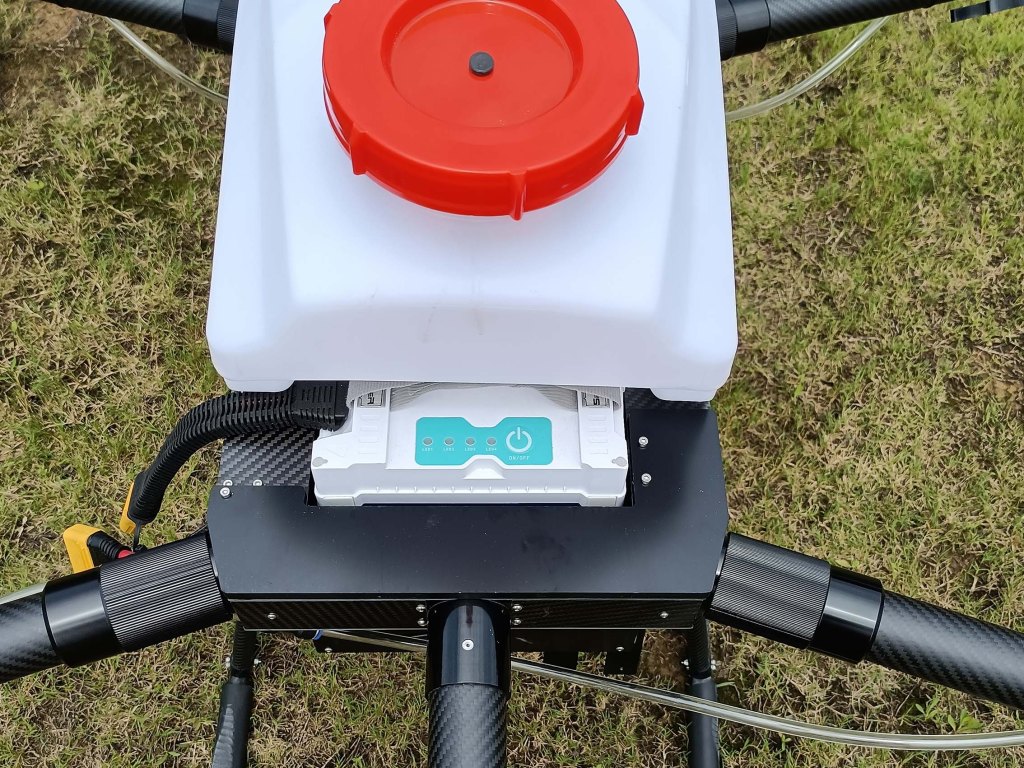

Modular installation positions, from top to bottom, are: GPS module, other modules, flight control module, power management module








Autonomous operation, easy and precise

By simply setting the operating parameters, fully autonomous operations can be achieved in a variety of operating scenarios such as terraces and orchards. In addition, the standard H12 long-distance digital image control integrated Android remote control, the system runs smoothly, and the interface is simple to operate. Equipped with a 5.5-inch high-brightness screen, you can see the screen clearly and operate easily under the scorching sun. The remote control has a built-in 1000mAh battery, which has a battery life of 20 hours, which fully meets the needs of long-term and high-intensity operations

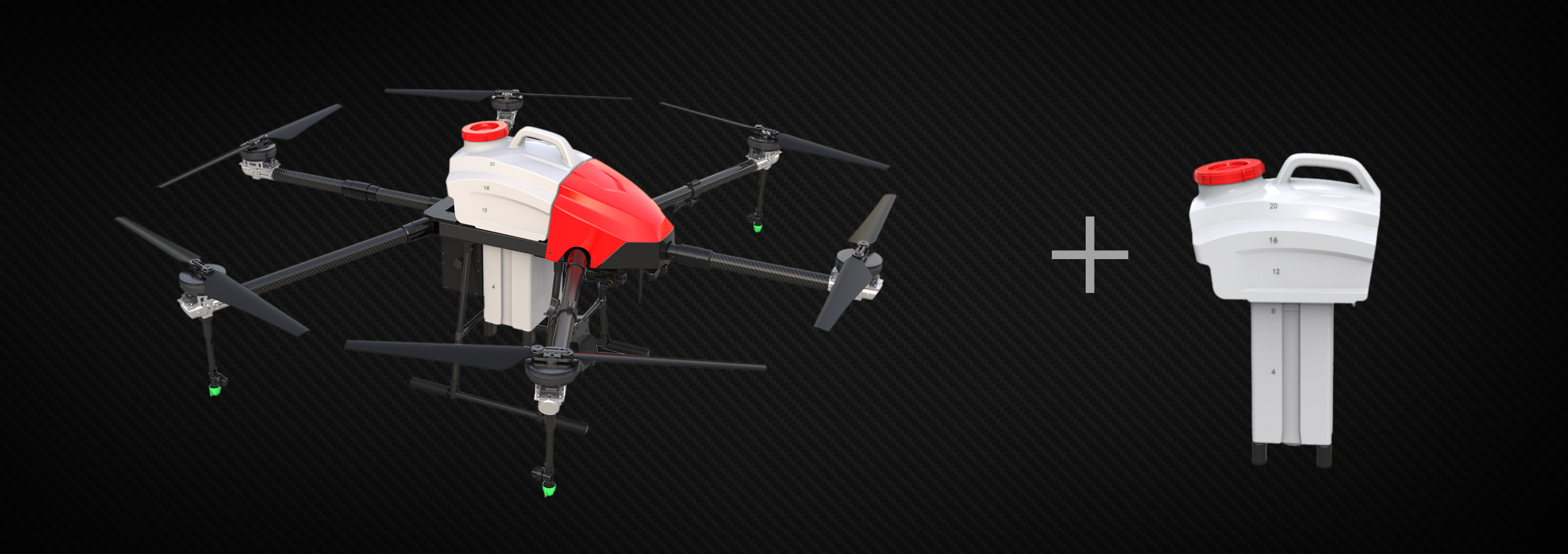

Standard configuration 2 water tanks, alternate use, 1 second to change the water tank, improve work efficiency




Multiple guarantees, safer flight

F620 is equipped with obstacle avoidance radar and ground defense radar, which can identify obstacles in front of the flight direction, and has the function of imitating ground flight to fully guarantee the safety of operation. Radar operation is not affected by ambient light and dust, and can perceive the farmland environment all-weather, and flight safety is further improved. F620 is also equipped with a real-time image monitoring system and night searchlights, allowing you to easily monitor the equipment operating environment.




Simple to use, worry-free maintenance

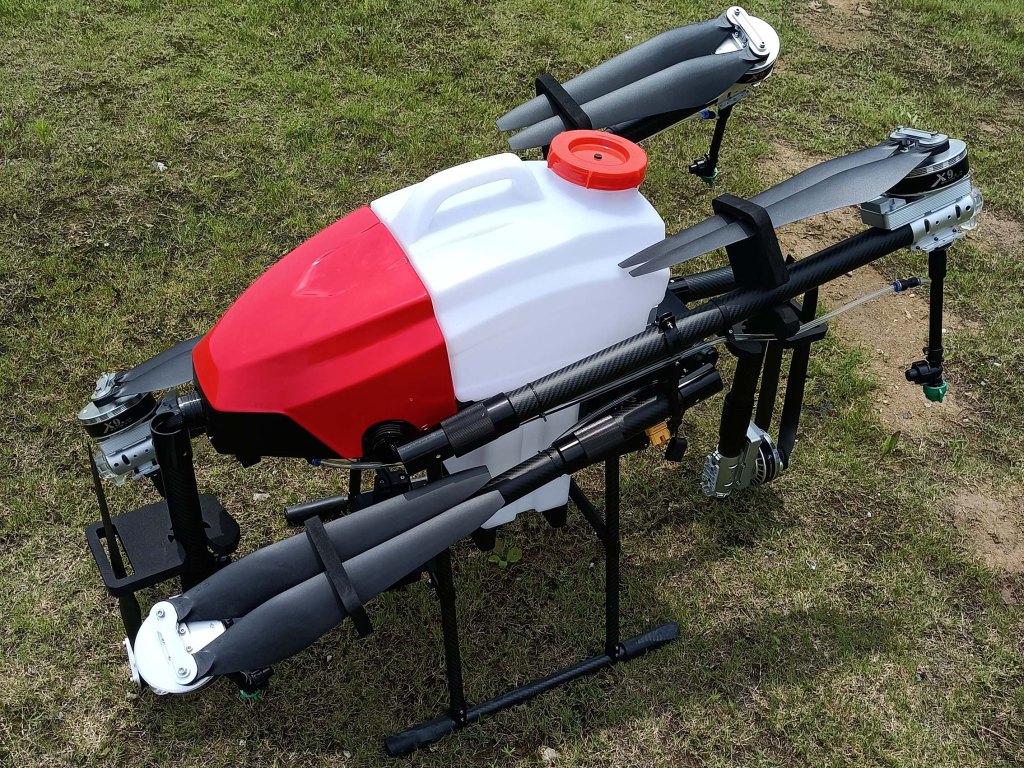

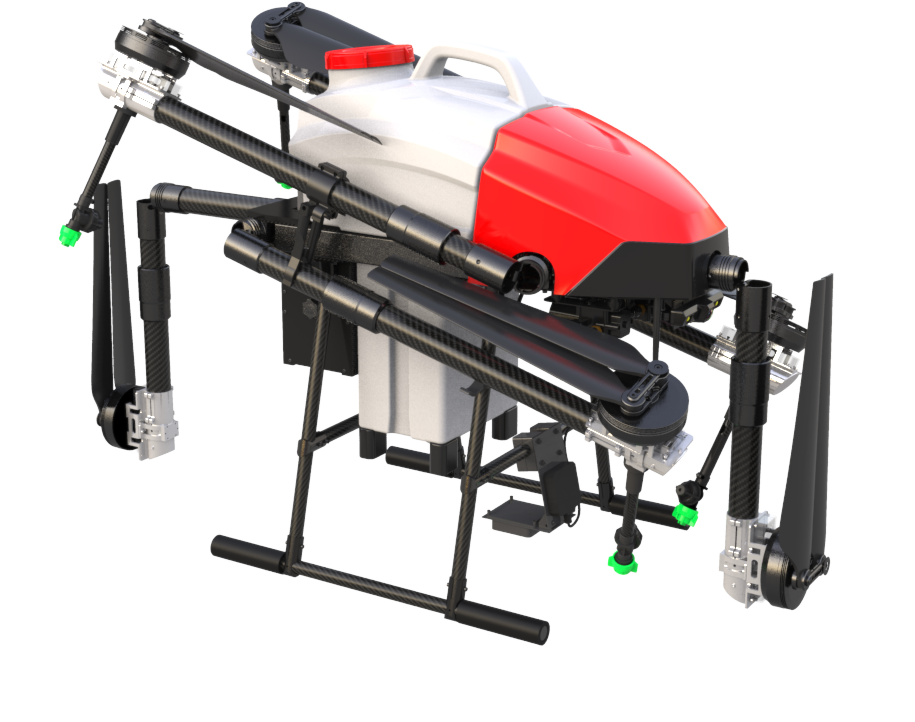

Folding design reduces space occupation and facilitates transportation. Core module protection, etc.



Model Name:FC-2021-F620
Expand Size:2590*2580*850mm
Folded size:1150*585*850mm
Water tank volume:20L
Fully loaded flight weight:48KG
Fully loaded flight time:8min
No-load flight time:19min
Flying speed:0-12m/s
Flying height:0-30m
Effective spray width:4.5m
Flight controller:JIYI K++
remote control:H12
Camera:HD camera
radar:Fixed height radar/Ground defense radar
Motor:X9 brushless motor
Paddle:34 inches
Battery/Quantity:12S,22000mah /6
charger:2 channels 1200W
Water pump :Brushless water pump
Nozzle:Pressure nozzle
