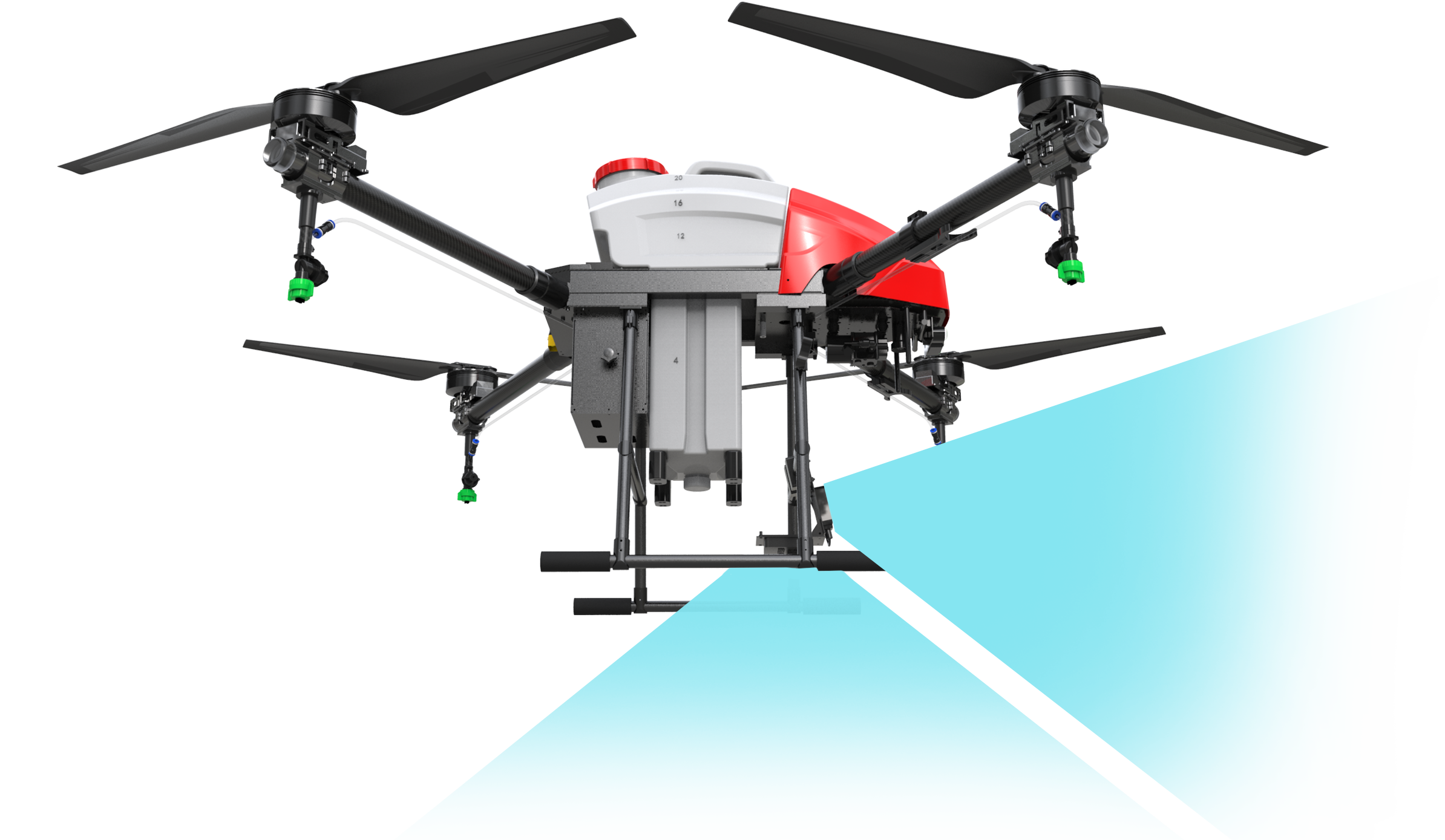

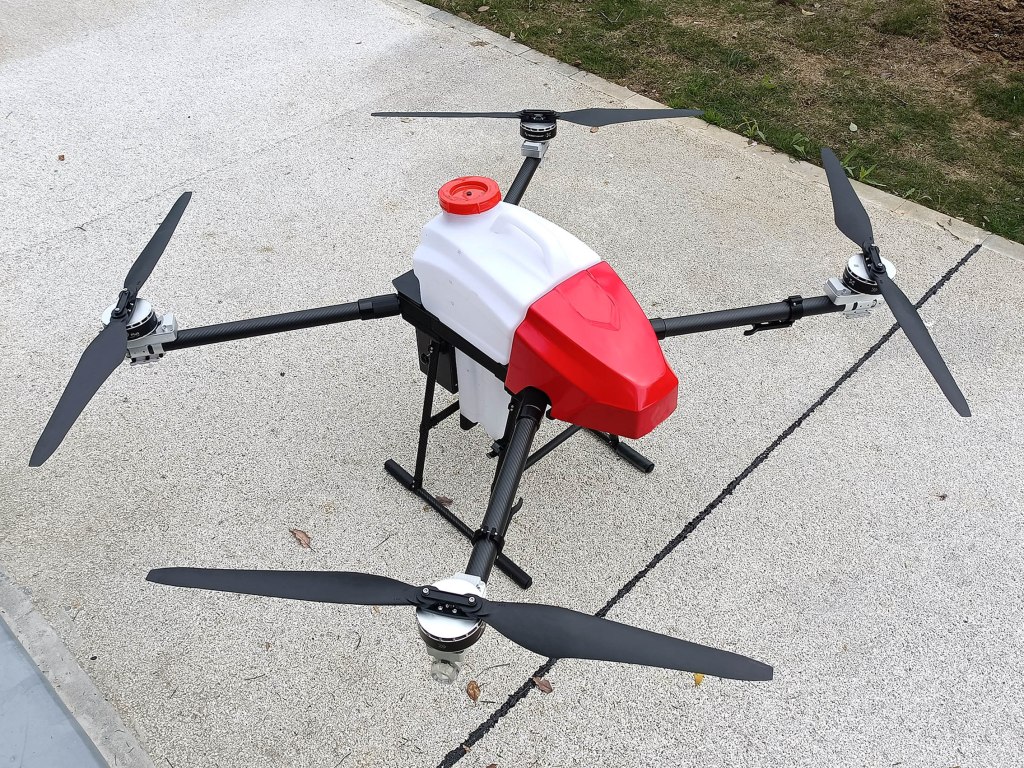

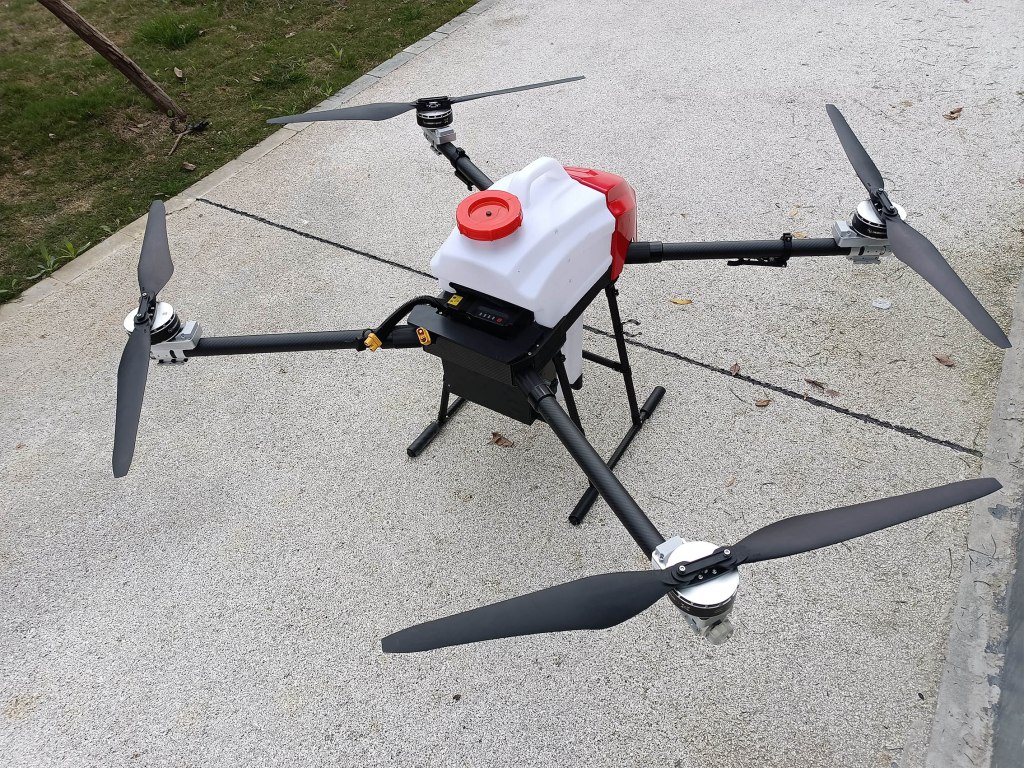

F420

The F420 has a load of 20kg, with a 4.5-meter wide spraying width, and has a single operation efficiency of 1.3 hectares. It can dispatch 7-8 sorties per hour to complete about 10 hectares of land. At least 5 batteries are required to ensure uninterrupted operation of the drone. More efficient. Newest design.

Modular installation positions, from top to bottom, are: GPS module, other modules, flight control module, power management module








Autonomous operation, easy and precise

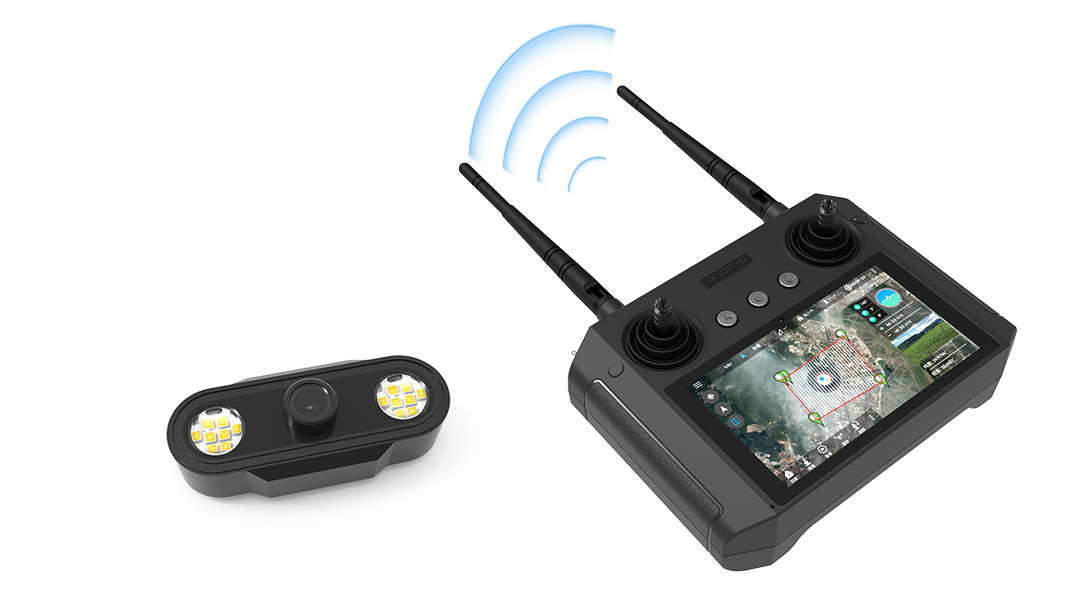

By simply setting the operating parameters, fully autonomous operations can be achieved in a variety of operating scenarios such as terraces and orchards. In addition, the standard H12 long-distance digital image control integrated Android remote control, the system runs smoothly, and the interface is simple to operate. Equipped with a 5.5-inch high-brightness screen, you can see the screen clearly and operate easily under the scorching sun. The remote control has a built-in 1000mAh battery with a battery life of 20 hours, which fully meets the needs of long-term and high-intensity operations.

Standard configuration 2 water tanks, alternate use, 1 second to change the water tank, improve work efficiency




Multiple guarantees, safer flight

F420 is equipped with obstacle avoidance radar and ground defense radar, which can identify obstacles in the front of the flight direction, and has the function of imitating ground flight to fully guarantee the safety of operations. Radar operation is not affected by ambient light and dust, and can perceive the farmland environment all-weather, and flight safety is further improved. F420 is also equipped with a real-time image monitoring system and night searchlights, allowing you to easily monitor the equipment operating environment.




Simple to use, worry-free maintenance

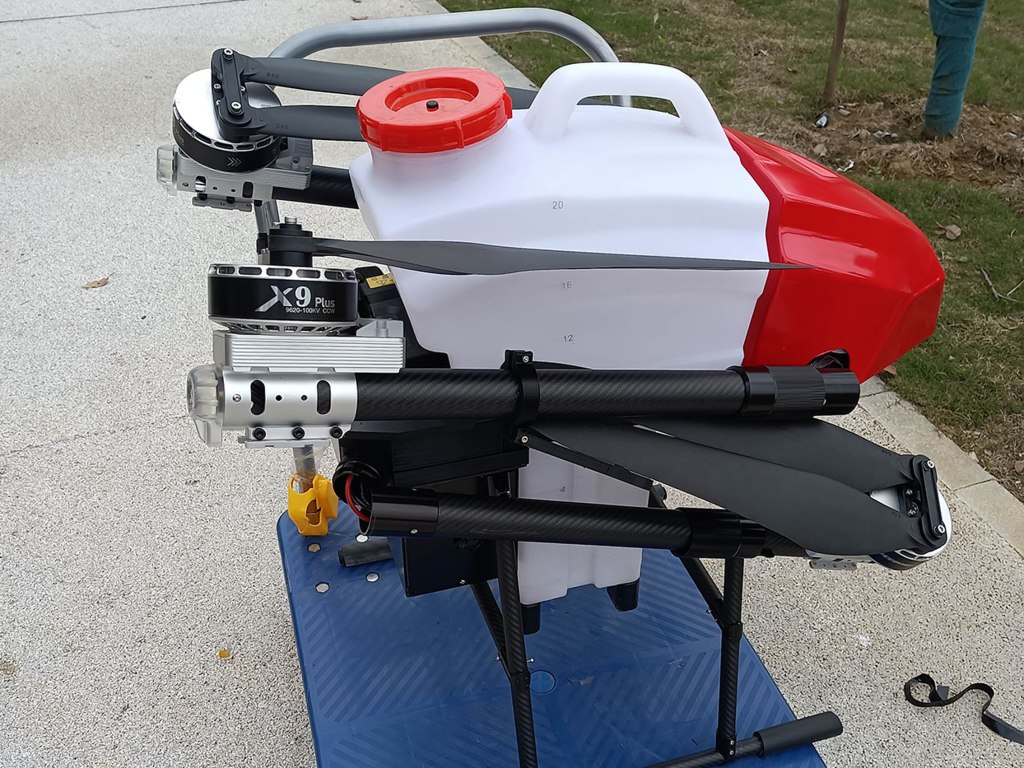

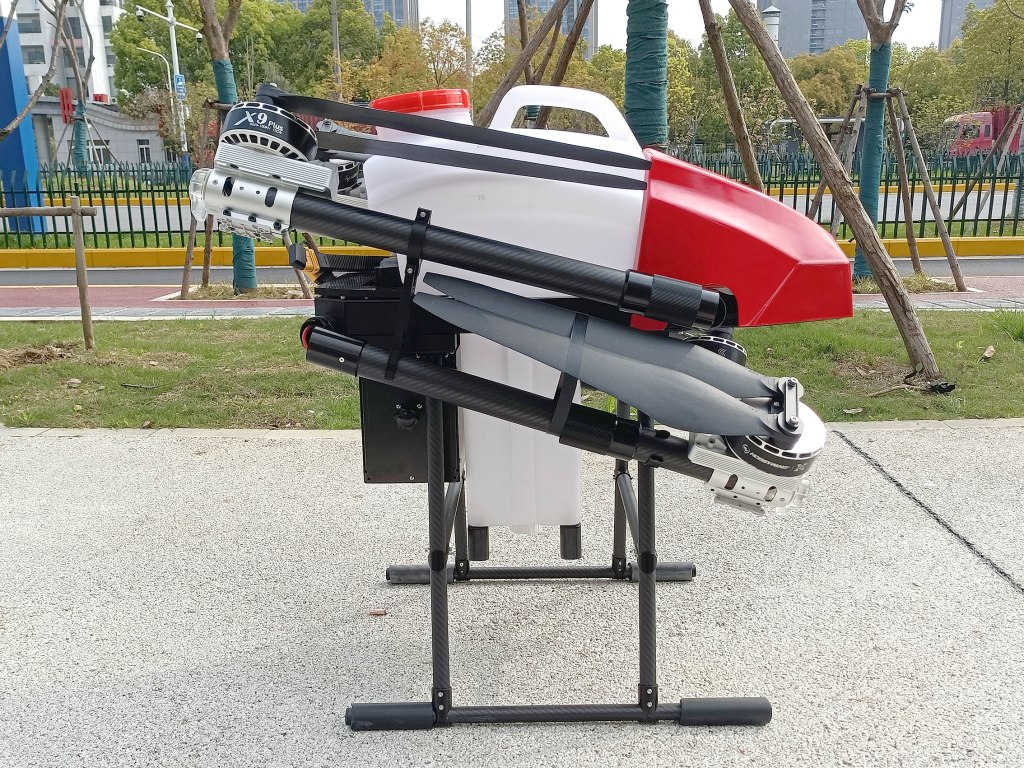

Stacking design reduces space occupation and facilitates transportation. The protection level of the core module reaches IP67, and the body can be washed directly with water. Daily use is more worry-free and effortless.



Model Name:FC-2021-F420
Expand Size:1950*2200*756mm
Folded size:785*590*756mm
Water tank volume:20L
Fully loaded flight weight:46KG
Fully loaded flight time:8min
No-load flight time:22min
Flying speed:0-12m/s
Flying height:0-30m
Effective spray width:4.5m
Flight controller:JIYI K++
remote control:H12
Camera:HD camera
radar:Fixed height radar/Ground defense radar

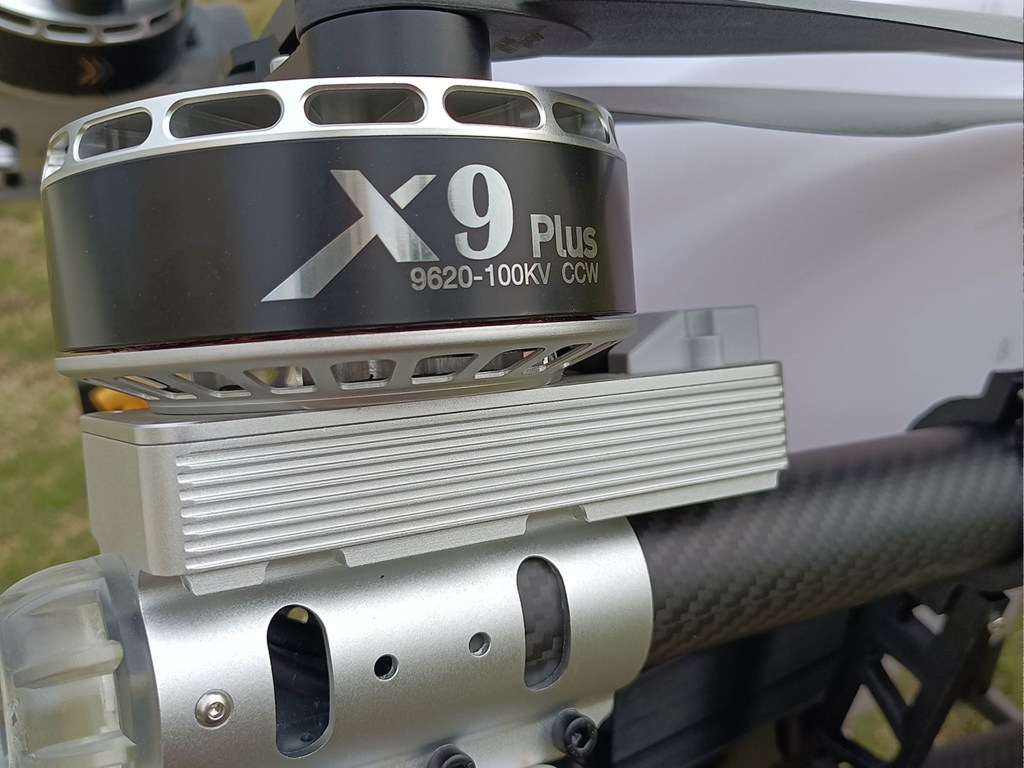

Motor:X9 plus brushless motor
Paddle:36  inches
Battery/Quantity:12S,22000mah /6
charger:2 channels 1200W
Water pump:Brushless water pump
Nozzle:Pressure nozzle
