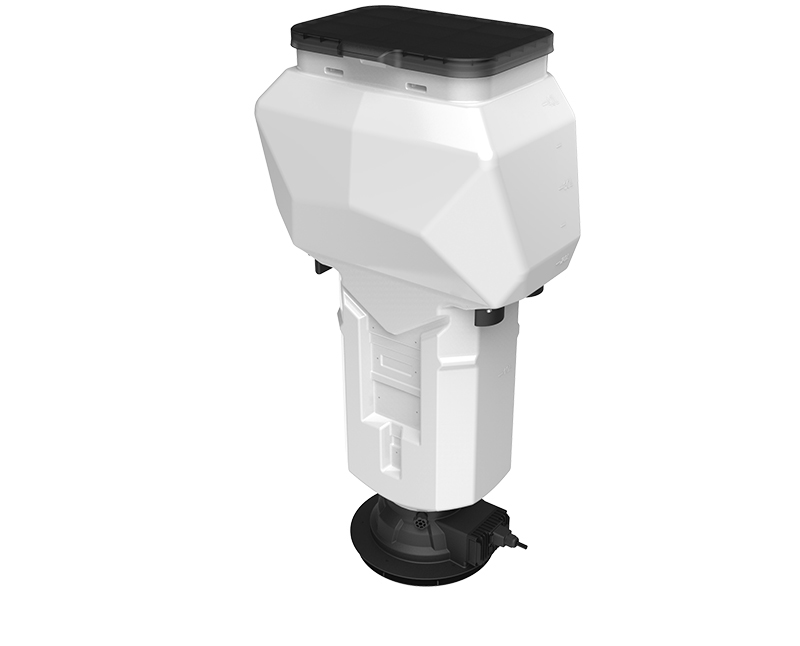

The particle spreading system can support different types of solid particles such as grains, fertilizers, baits, etc.The sowing is suitable for sowing operations such as sowing, spreading fertilizer, and casting bait. It can only be used with GX420/GX620/GX626/F630 drones.
Work efficiency
40L spreader, with a spreading width of 10m, the operating efficiency of a single sortie is 2.2 hectares, and 6-7 sorties can be dispatched per hour, completing about 15 hectares of land, making the operation more efficient
Quick disassembly
The spreader and the bucket adopt a separate quick-release design, which can be quickly disassembled with three hand-tight screws, which is convenient for maintenance.
Precise control

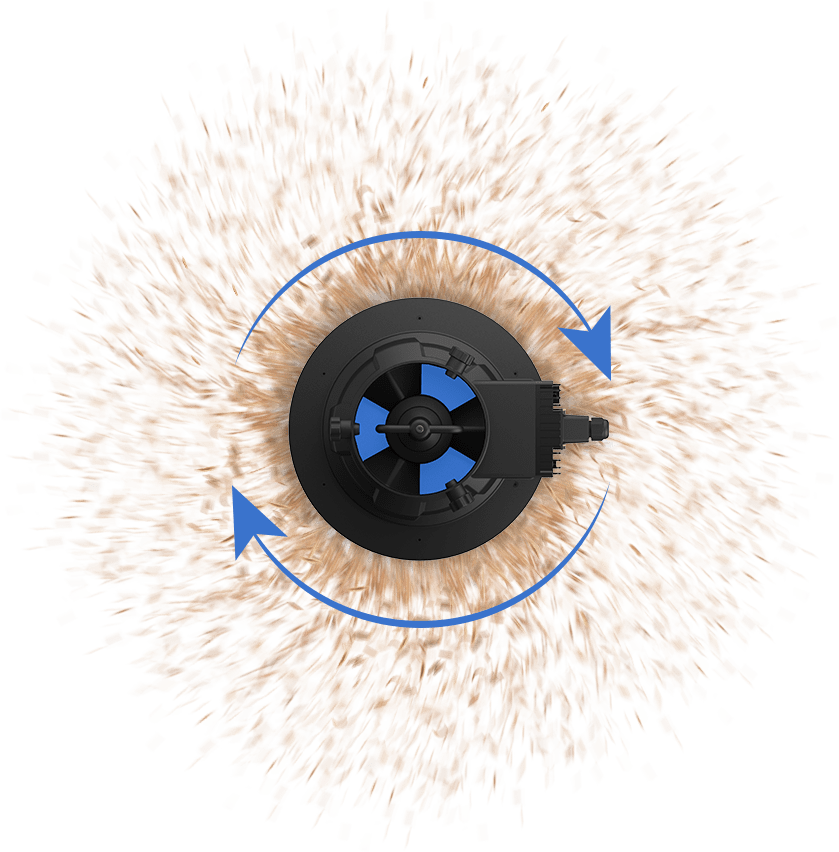

360° spreading, super large spreading flow, 40L volume fertilizer or seeds can be spread in the fastest 55 seconds. The size of the discharge valve and the speed of the spreading turntable can be adjusted to precisely control the discharge amount and speed. At the same time, the spreader is equipped with a stirring device to prevent the discharge from clogging and improve the spreading operation
Sealed and waterproof IP67
The spreader has multiple waterproof designs from the inside to the outside, and the waterproofness of the whole machine reaches IP67 level, and it can be washed all over the body.
Show results
***Since the density of solid particles is less than water, the volume of 40L, the actual weight of solid particles loaded is only about 20-33KG, so there is no need to worry about overloading.。

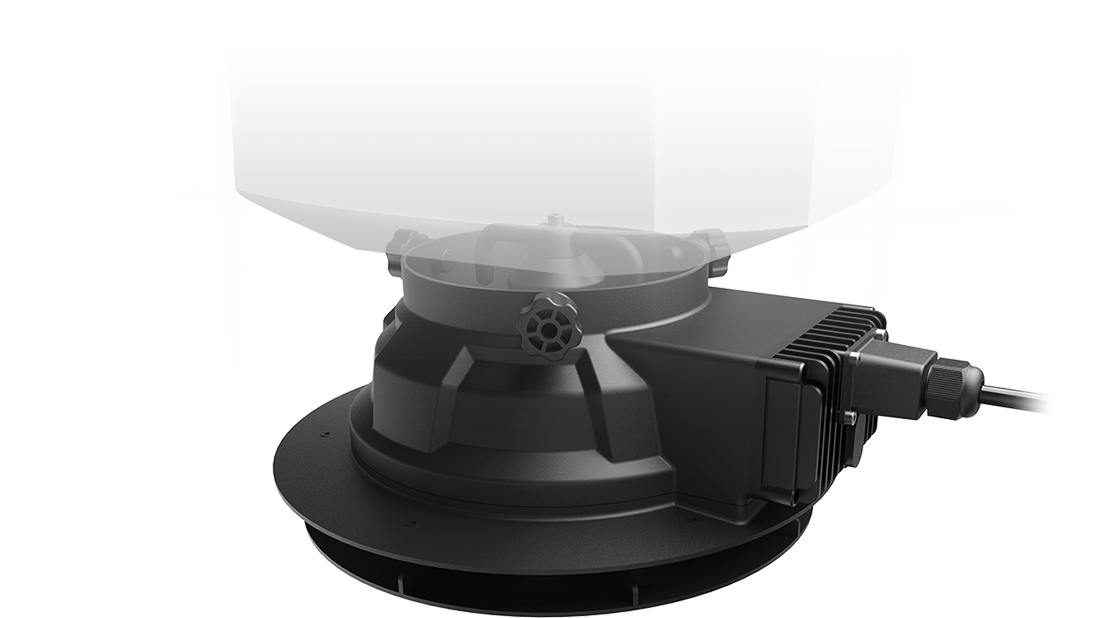

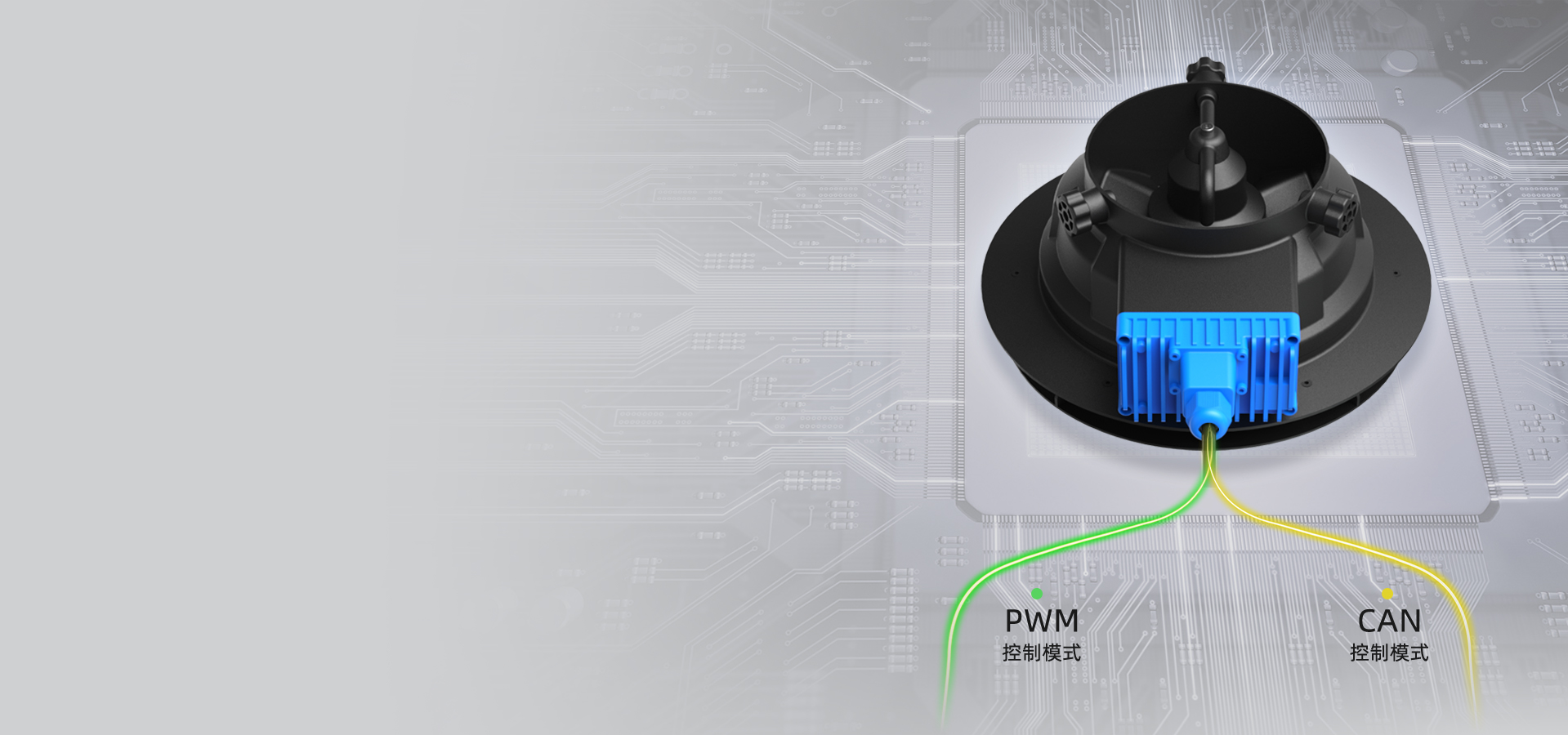

The main body of the spreader is made of high-quality composite material injection molding, which is strong and durable.The turntable is driven by a brushless motor, which is stable and reliable, and has a longer life. At the same time, it has a built-in control module, and the wiring is ready to use
，
40L Particle spreader size chart
compatible GX420 / GX620 / GX626 / F630

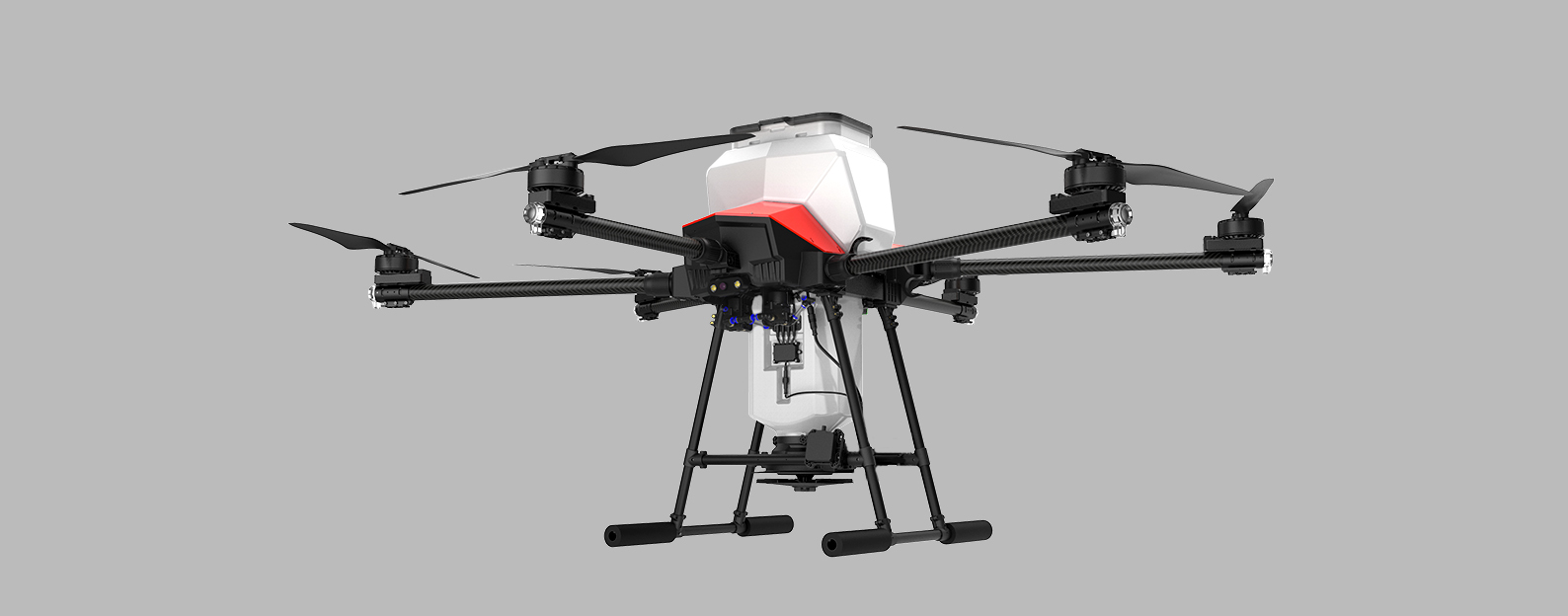

This particle spreading system is a separate accessory, which can only be used with GX420 / GX620 / GX626 / F630 drones. It can exchange solid particles and spray liquid pesticides. It is convenient and quick, and the installation is very simple.
Note: Used in GX420 and GX620 UAVs, the weight of the solid particles loaded in the spreader should not exceed 22KG
Used in GX420 and GX620 UAVs, the weight of the solid particles loaded in the spreader should not exceed 35KG
| Model Name： | FC-2020-EPS40 | Maximum speed： | 1100r/min |
| product weight： | 2.62KG | Valve angle： | 0-60° |
| Maximum volume： | 40L | Power value： | 1000us-2000us |
| Effective volume： | 39L | Lack of material signal： | Fee-0V; Paid-5V |
| Spreading width： | 10m | Particle diamete： | 0.5-9mm |
| Outgoing wire length： | 50cm | Operating Voltage： | 24-60V |
| Applicable drone model： | GX420 / GX620 / GX626 / F630 | Spreading distance： | 2-7m |
