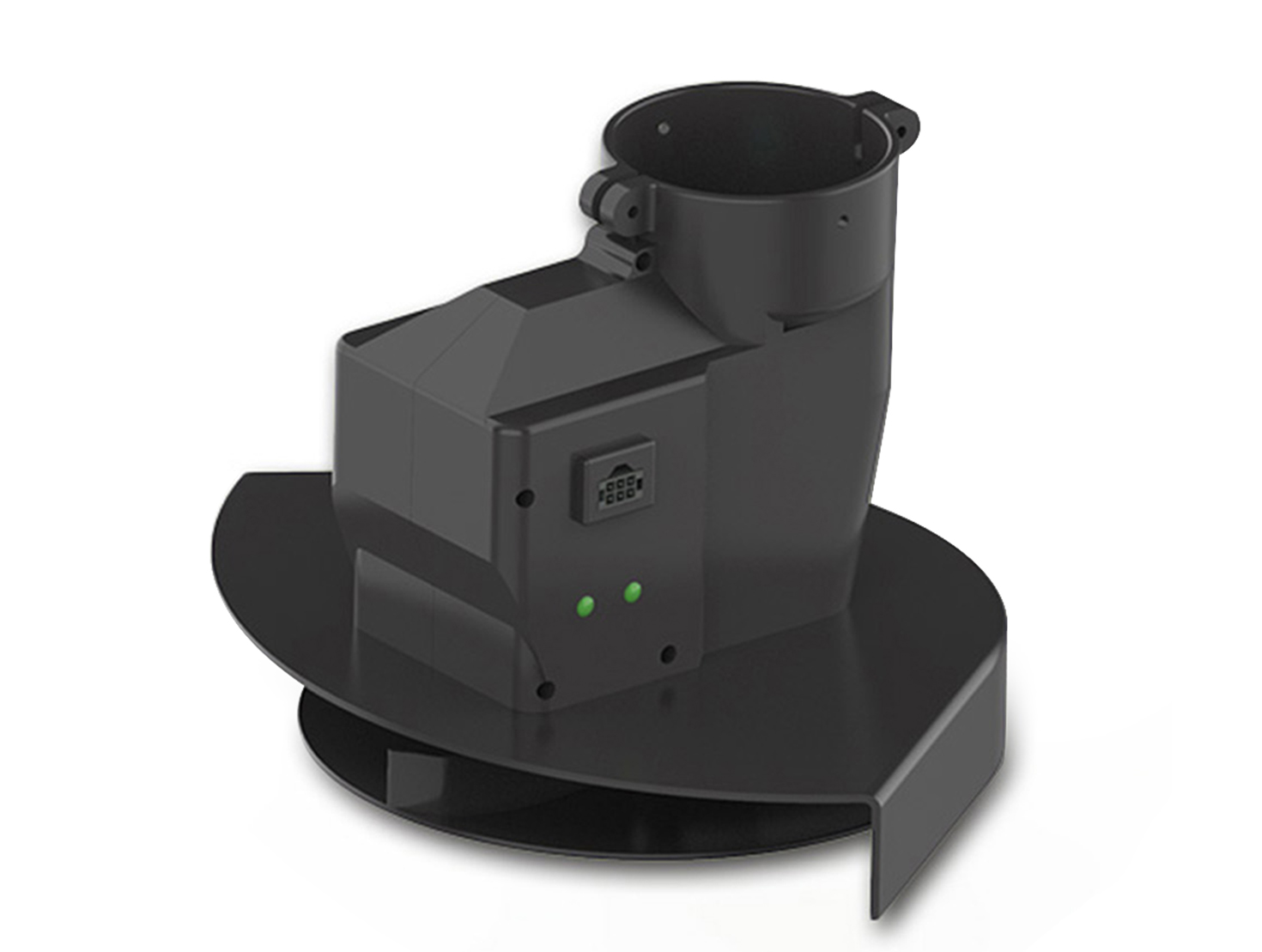

The particle spreading system can support different types of solid particles such as grains, fertilizers, baits, etc.
The sowing is suitable for sowing operations such as sowing, spreading fertilizer, and casting bait. It can only be used with F416/F420/F616/F620 drones.
Work efficiency
The 20L spreader, with a spreading width of about 7m, has an operating efficiency of 1.8 hectares for a single sortie, and can dispatch 7-8 sorties per hour to complete about 13 hectares of land. The operation is more efficient. The 160mm enlarged turntable can achieve a maximum spreading width of 9m.
Automatic spreading
Can realize automatic spreading operation, efficient and intelligent, avoiding manual The unevenness of the operation makes the spreading operation more efficient and even
Precise control
The spreader can adjust the size of the discharge valve and the rotation speed of the spreading turntable, so as to precisely control the discharge amount and speed. At the same time, the spreader is equipped with a stirring device to prevent the discharge from clogging and improve the spreading operation

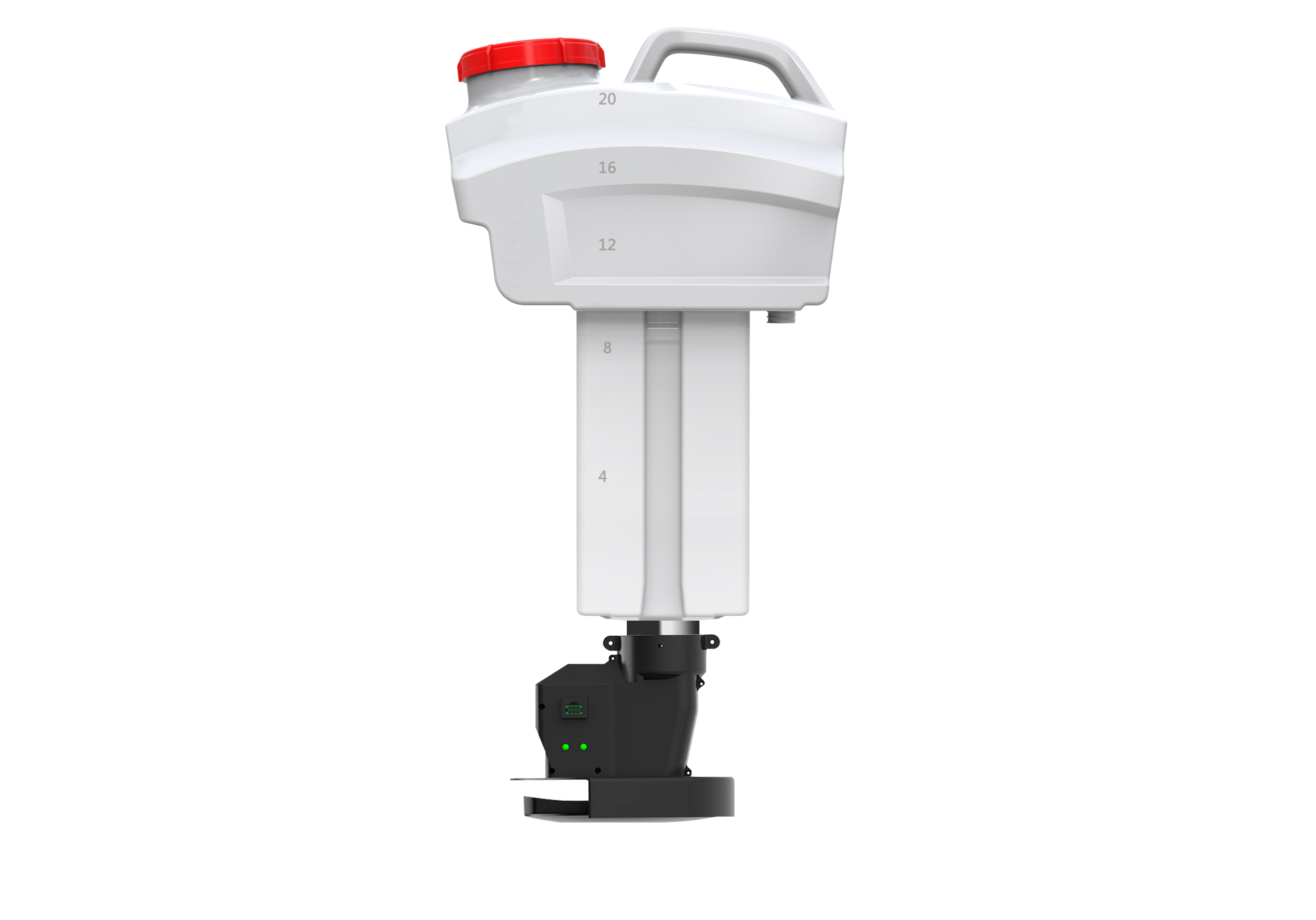

20L Particle spreader size chart
compatible F416/F420/F616/F620
This particle spreading system is a separate accessory, which can only be used with F416/F420/F616/F620 drones. It can exchange solid particles and spray liquid pesticides. It is convenient and fast, and the installation is very simple.
| Model Name： | FC-2021-F2516 | Maximum speed： | 1100r/min |
| product weight： | 2.2KG | Valve angle： | 0-90° |
| Maximum volume： | 21L | Power value： | 20W |
| Effective volume： | 20L | Material shortage signal： | Lack of material-low; material-high |
| Spreading width： | 5-9m | Particle diameter： | 1-8mm |
| Outgoing wire length： | 45cm | Operating Voltage： | 22-60V |
| Applicable drone model： | F416/F616/F420/F620 | Spreading distance： | 3-6m |
