The particle spreading system can support different types of solid particles such as grains, fertilizers, baits, etc.The sowing is suitable for sowing operations such as sowing, spreading fertilizer, and casting bait. It can only be used with E416 and E616 drones.
Work efficiency
A 20L spreader, with a spreading width of 5m, has an operating efficiency of 1.6 hectares for a single sortie, and 7-8 sorties per hour can be dispatched to complete about 12 hectares of land, making the operation more efficient

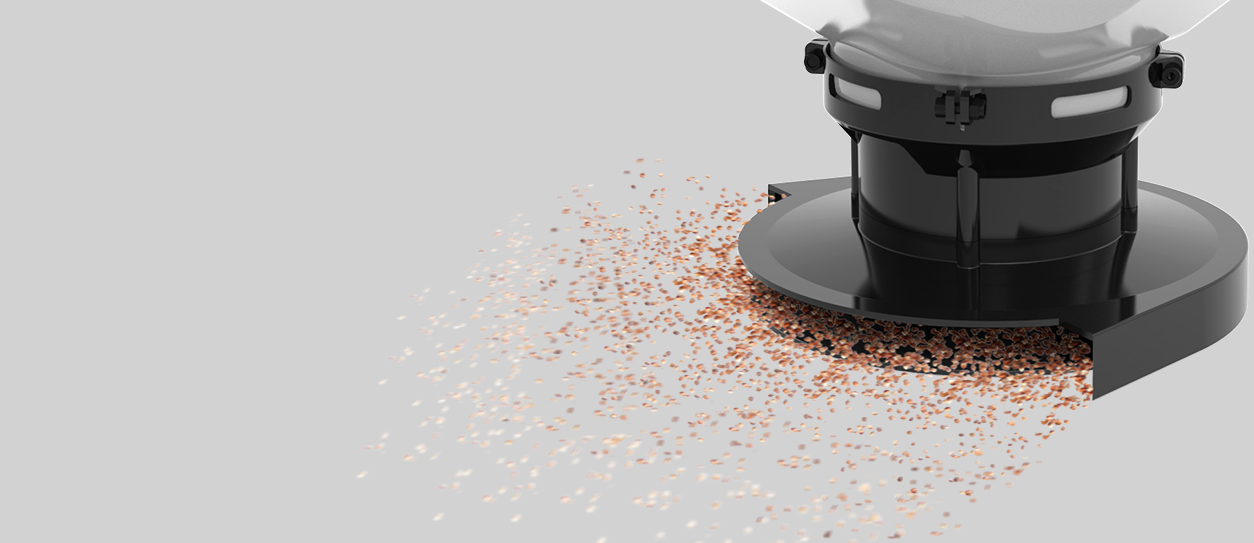

Automatic spreading
Can realize automatic spreading operation, efficient and intelligent, avoiding manual The unevenness of the operation makes the spreading operation more efficient and even
Precise control

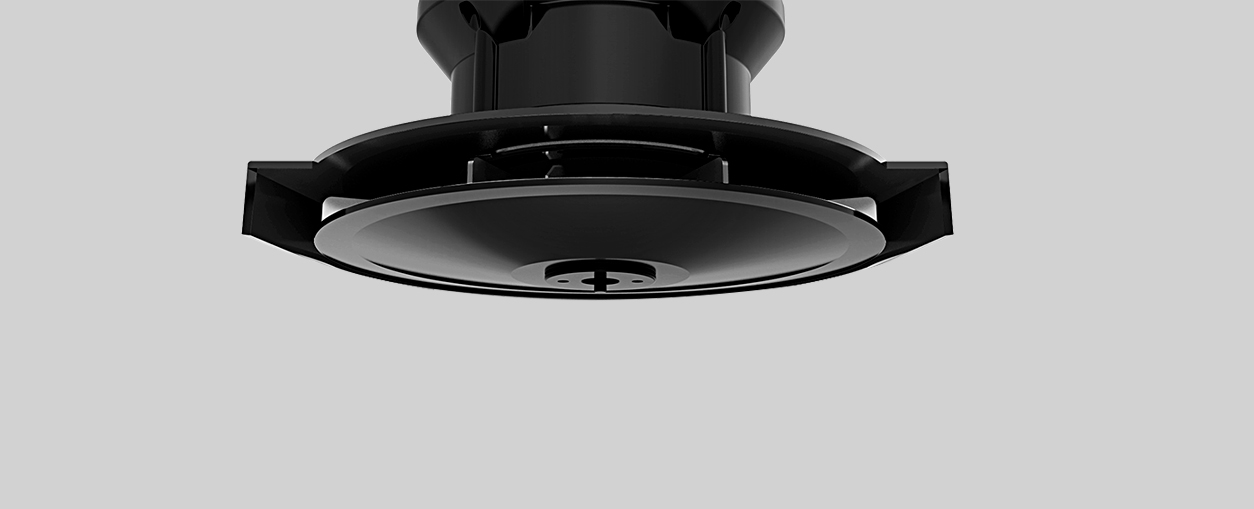

The spreader can adjust the size of the discharge valve and the rotation speed of the spreading turntable, so as to precisely control the discharge amount and speed. At the same time, the spreader is equipped with a stirring device to prevent the discharge from clogging and improve the spreading operation
***Since the density of solid particles is less than water, the volume of 20L, the actual weight of solid particles is only about 14-17KG, so there is no need to worry about overloading of E416 and E616.

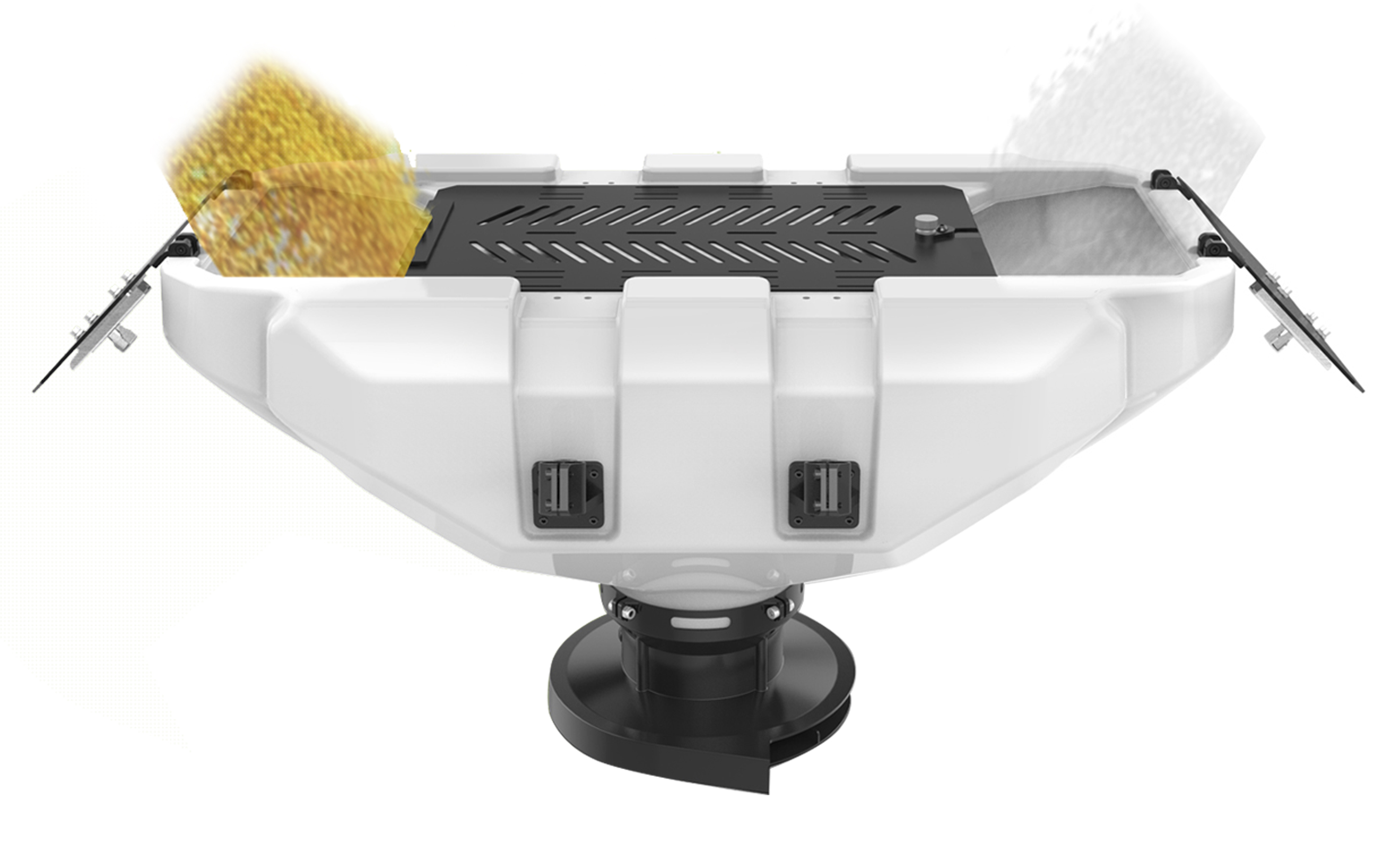

The main body of the spreader is made of high-quality composite material injection molding, which is strong and durable.The turntable is driven by a brushless motor, which is stable and reliable, and has a longer life. At the same time, it has a built-in control module, and the wiring is ready to use.

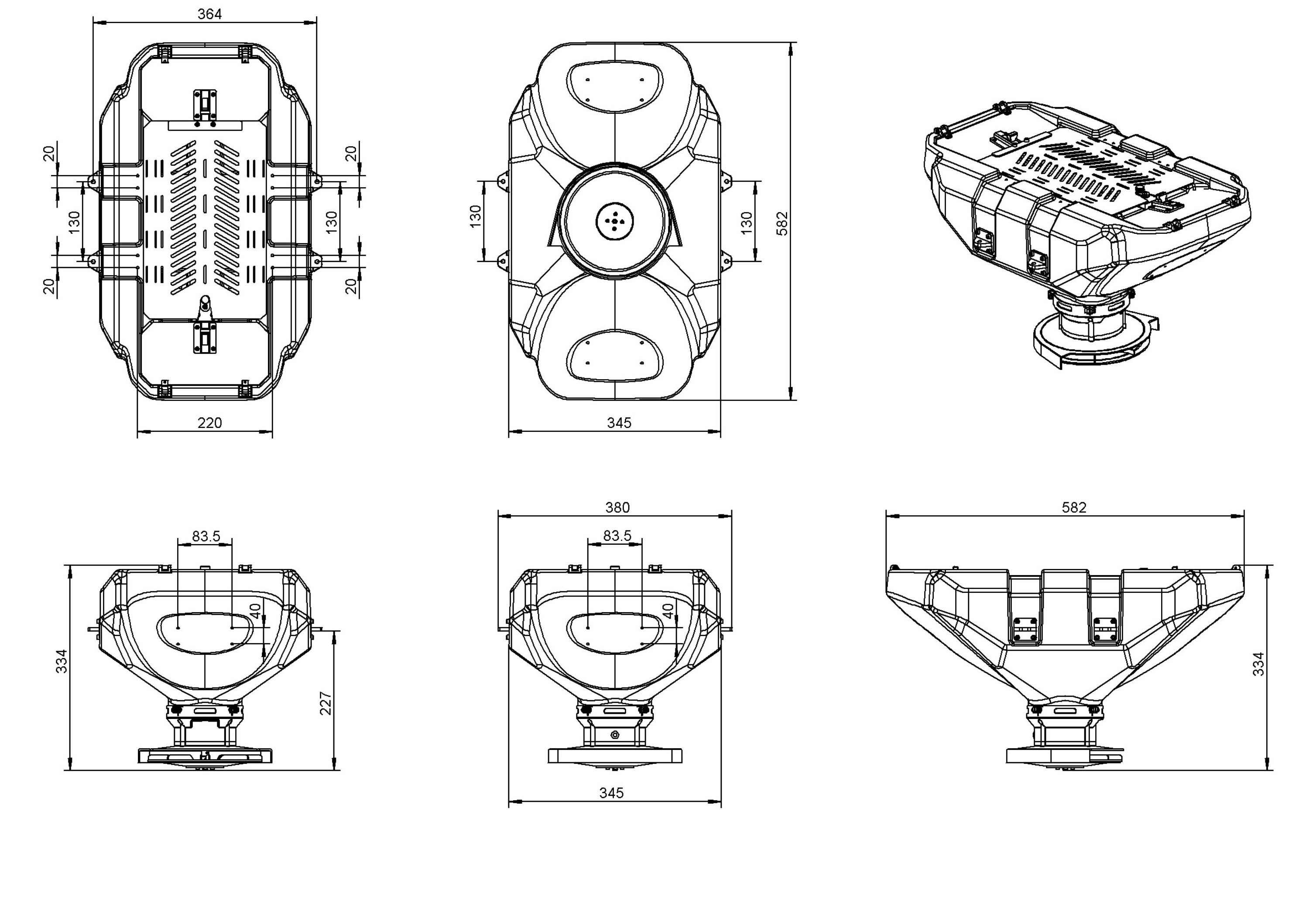

20L Particle spreader size chart
compatible E416 and E616
This particle spreading system is a separate accessory and can only be used with E416 and E616 UAVs. It can realize the exchange of spraying solid particles and spraying liquid pesticides, which is convenient and quick, and the installation is very simple.
| Model Name： | FC-2020-EPS22 | Maximum speed： | 1250r/min |
| product weight： | 2.5KG | Valve angle： | 0-90° |
| Maximum volume： | 22L | Power value： | 5V |
| Effective volume： | 20L | Material shortage signal： | Lack of material-low; material-high |
| Spreading width： | 3-6m | Particle diameter： | 05.-8mm |
| Outgoing wire length： | 50cm | Operating Voltage： | 20-60V |
| Applicable drone model： | E416/E616 | Spreading distance： | 2-5m |
