The particle spreading system can support different types of solid particles such as grains, fertilizers, baits, etc.The sowing is suitable for sowing operations such as sowing, spreading fertilizer, and casting bait. Can only be used with E410 and E610 drones
。
Work efficiency
10L spreader, with a spreading width of 5m, the efficiency of a single sortie is 0.8 hectares, and 8-9 sorties can be dispatched per hour, completing about 7 hectares of land, making the operation more efficient

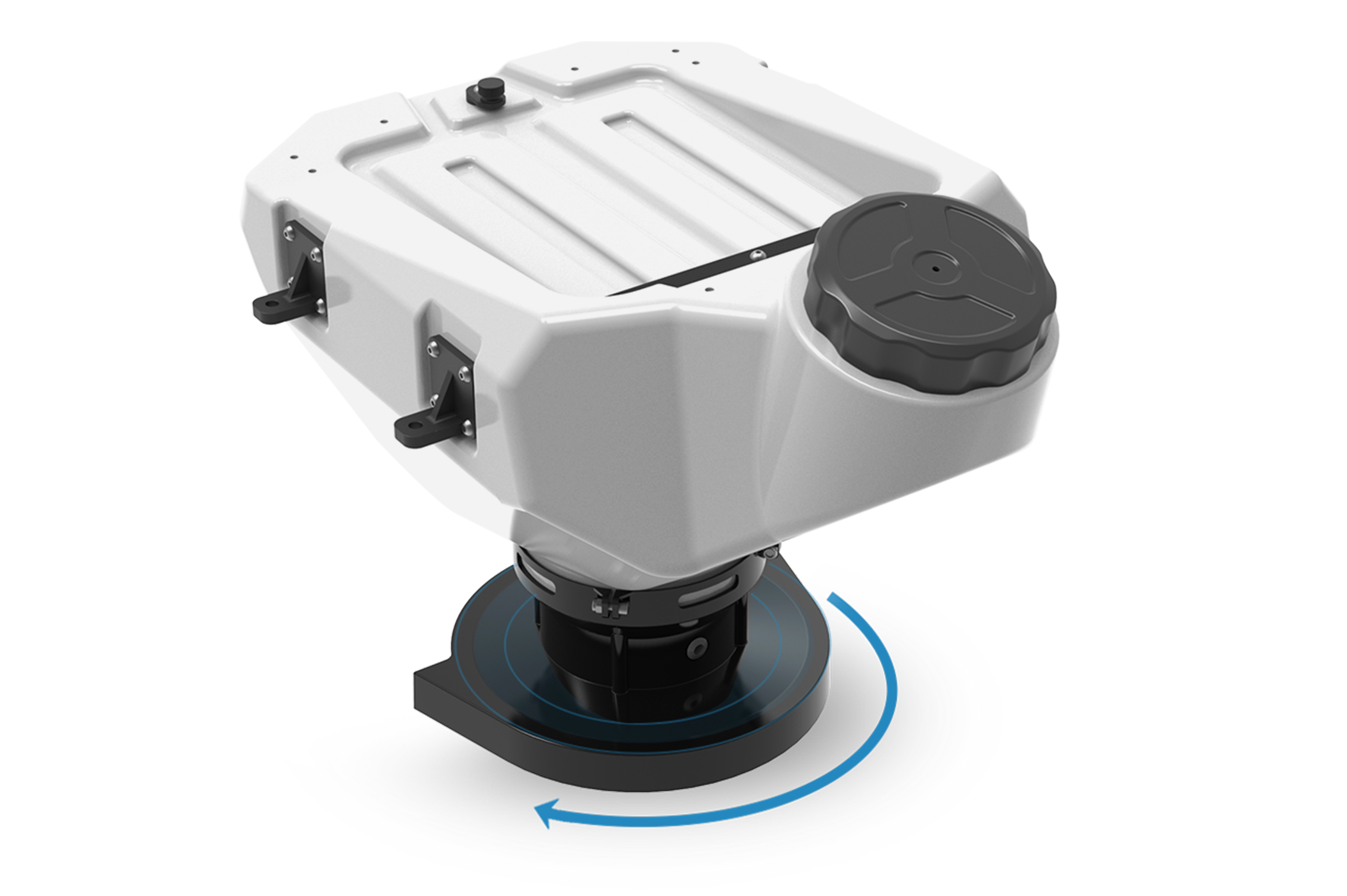

Automatic spreading
It can realize automatic spreading operation, high efficiency and intelligence, avoiding the unevenness of manual operation, and making the spreading operation more efficient and even
Precise control
The spreader can adjust the size of the discharge valve and the rotation speed of the spreading turntable, so as to precisely control the discharge amount and speed. At the same time, the spreader is equipped with a stirring device to prevent the discharge from clogging and improve the spreading operation

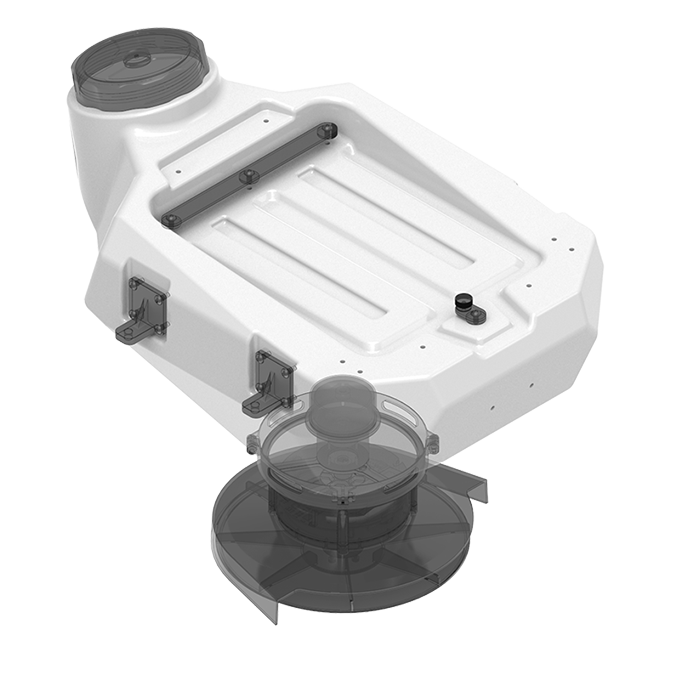

The main body of the spreader is made of high-quality composite material injection molding, which is strong and durable.The turntable is driven by a brushless motor, which is stable and reliable, and has a longer life. At the same time, it has a built-in control module, and the wiring is ready to use
10L Particle spreader size chart
Compatible with E410 and E610
This particle spreading system is a separate accessory and can only be used with E410 and E610 drones.
It can realize the exchange of spraying solid particles and spraying liquid pesticides, which is convenient and quick, and the installation is very simple.
| Model Name： | FC-2020-EPS10 | Maximum speed： | 1250r/min |
| product weight： | 2KG | Valve angle： | 0-90° |
| Maximum volume： | 12L | Power value： | 5V |
| Effective volume： | 10L | Material shortage signal： | Lack of material-low; material-high |
| Spreading width： | 3-6m | Particle diameter： | 05.-8mm |
| Outgoing wire length： | 50cm | Operating Voltage： | 20-60V |
| Applicable drone model： | E410/E610 | Spreading distance： | 2-5m |
